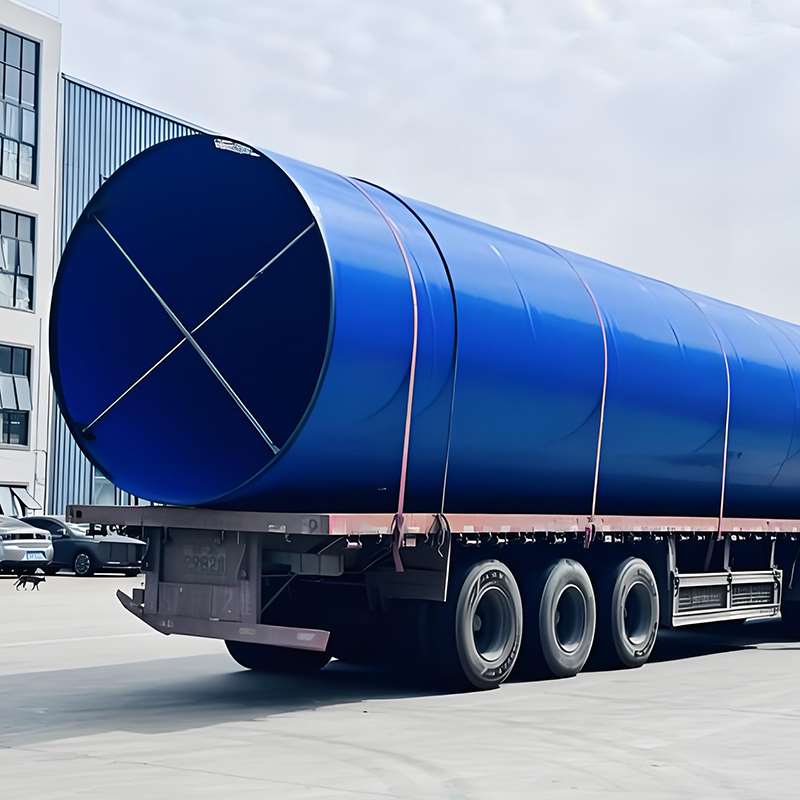

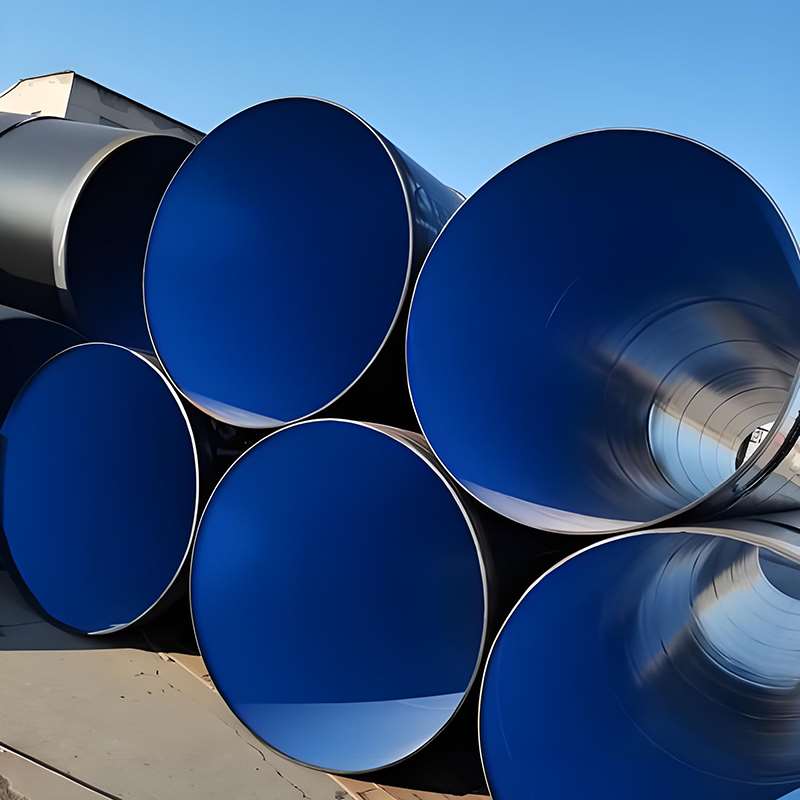

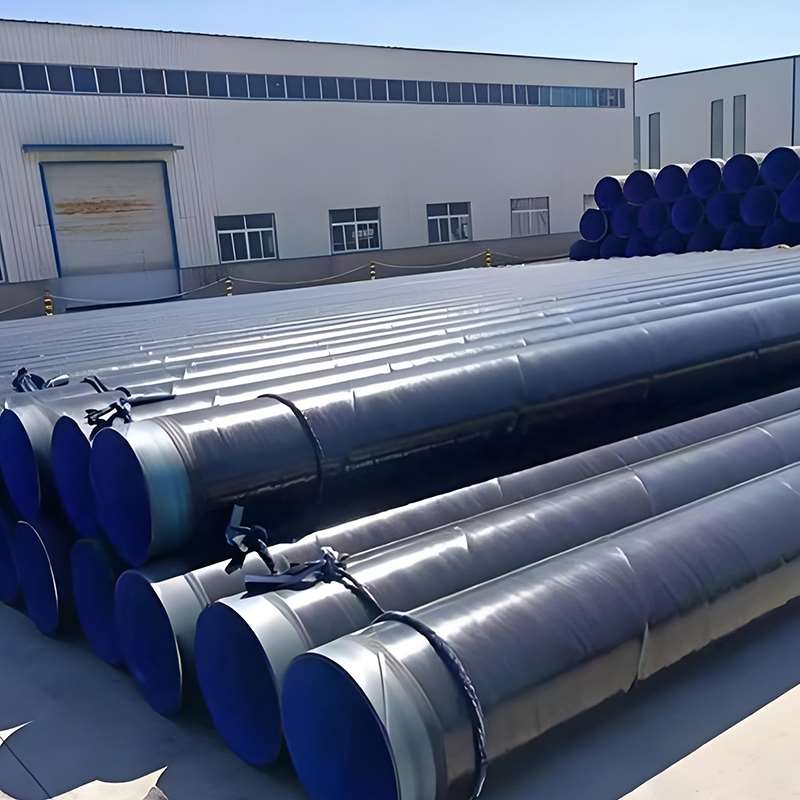

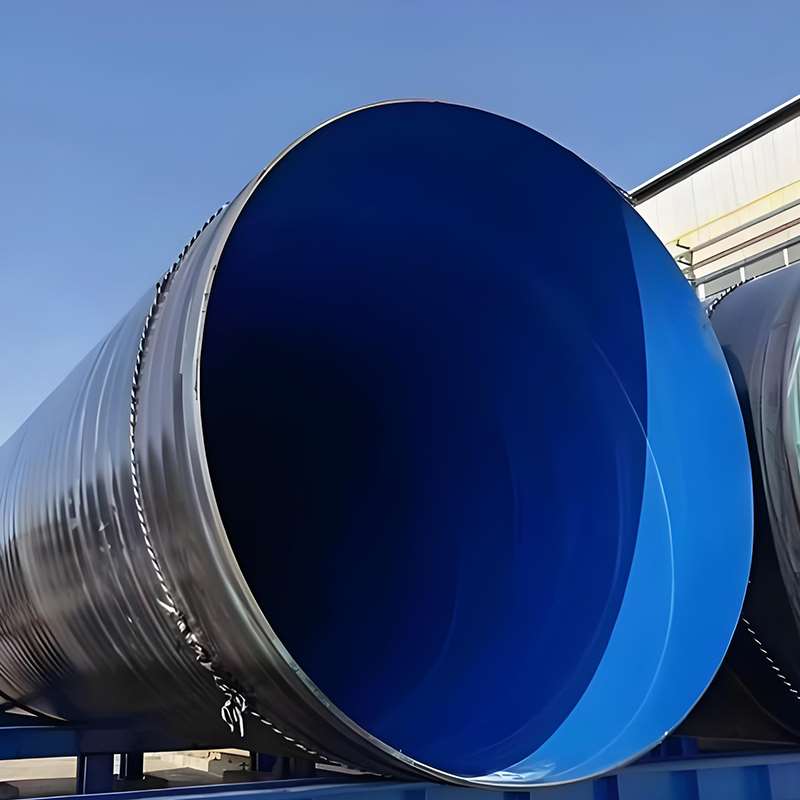

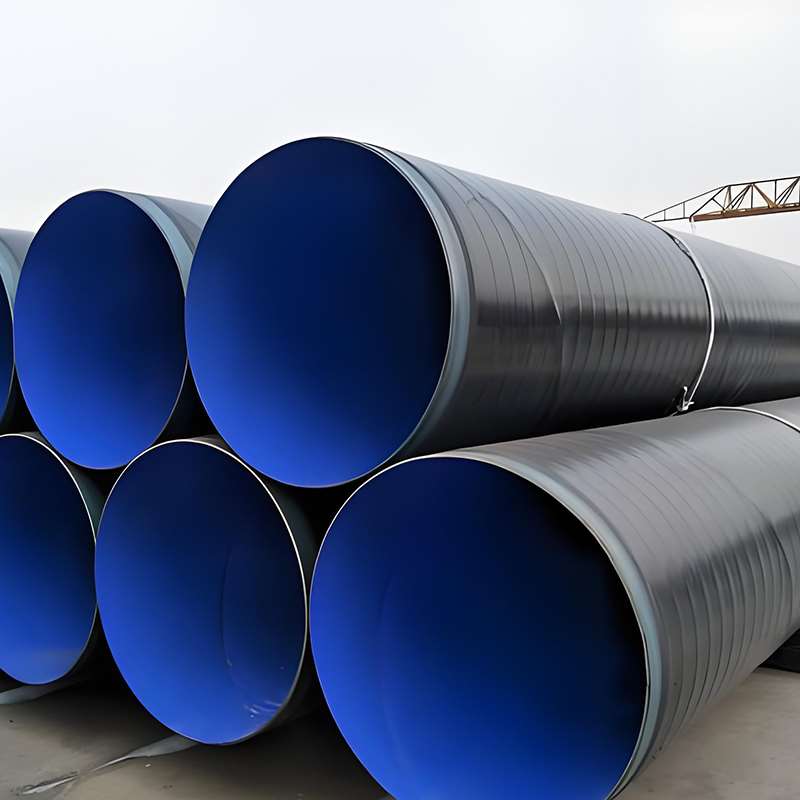

A Coated Spiral Steel Pipe is manufactured on the basis of SSAW (Spiral Submerged Arc Welded) steel pipes. Through the application of external and internal anti-corrosion coating systems, the pipe is significantly enhanced in terms of corrosion resistance, service life, and transportation stability. It is widely used in petroleum, natural gas, urban gas distribution, offshore engineering, and large-scale energy infrastructure projects.

I. Requirements for Oil and Gas Transmission Pipelines

The oil and gas transmission industry imposes extremely stringent requirements on pipeline materials. Since the transported media typically involve high pressure, high corrosion, and continuous operation, pipelines must not only possess excellent mechanical strength but also remain stable and reliable throughout long-term operation.

Modern oil and gas pipelines typically need to meet the following requirements:

1. High-Strength Pressure Resistance

• During long-distance transportation, internal pipeline pressures are high, particularly in natural gas transmission projects, where operating pressures are often far higher than those of ordinary industrial pipelines. Therefore, steel pipes must possess excellent tensile strength, yield strength, and resistance to deformation.
• Spiral welded steel pipes, utilizing a continuous spiral welding process, can be manufactured in large diameters and with thick walls, capable of meeting high-pressure transmission requirements.

2. Stable Long-Term Operation

• Once put into service, oil and gas pipelines often require continuous operation for decades. Any leakage, corrosion, or weld failure can lead to severe economic losses or even safety incidents. Consequently, pipeline systems demand extremely high material stability.

3. Good Weldability

• In large-scale pipeline projects, the volume of on-site welding work is substantial. Steel pipes must not only possess good weldability but also ensure long-term weld stability.

4. Resistance to Environmental Corrosion

• Complex environments such as underground, underwater, saline-alkali soils, deserts, and high-humidity areas can cause continuous corrosion of steel pipes. Consequently, corrosion protection systems have become an indispensable and critical component of modern oil and gas pipelines.

II. Background of the API 5L Standard

In the international oil and gas transportation industry, the API 5L standard is widely used in the manufacturing and quality control of pipeline steel.
API 5L was developed by the American Petroleum Institute (API) and primarily applies to pipeline steel used for oil and gas transportation. The standard sets strict specifications for the chemical composition, mechanical properties, weld quality, non-destructive testing, and dimensional tolerances of steel pipes.

Currently common steel grades include:

• API 5L Grade B
• API 5L X42
• API 5L X52
• API 5L X60
• API 5L X70
• API 5L X80

API 5L is also divided into two performance levels: PSL 1 and PSL 2:

III. Long-Distance Oil & Gas Pipelines: Safety Challenges and Protection Strategies Under High-Pressure Conditions

Oil and gas transportation projects are characterized by long-distance transmission, high operating pressure, and extreme environmental conditions, such as cross-border trunk lines, subsea pipelines, and projects in arctic or desert regions. These demanding conditions require pipeline systems to be designed with exceptionally high safety redundancy.

1. High-Pressure Operation: Stress Cycles and Material Limits

Under high-pressure conditions, pipeline bodies are subjected to long-term cyclic stress loads. Any inconsistency in material performance can easily lead to catastrophic failures.

Key Risks:
Fatigue cracking at weld seams, permanent pipe deformation, brittle fracture (pipe rupture), and large-scale leakage.

Technical Protection Measures:

• Non-Destructive Testing (NDT):
  Full-body ultrasonic testing (UT) is required to detect internal defects, while weld seams must undergo X-ray radiographic testing (RT).
• Hydrostatic Pressure Testing:
  Pipelines must be tested at 1.25 to 1.5 times higher than the design operating pressure to verify structural integrity.

2. External Environment: Electrochemical Corrosion in Harsh Conditions

Pipelines are typically buried underground or laid on the seabed for decades, where they are continuously exposed to electrochemical corrosion.

Key Risks:
Moisture, microorganisms, soil salinity, and stray currents in the soil can gradually thin the pipe wall and significantly reduce service life.

Technical Protection Measures:

• Composite Anti-Corrosion Coatings:

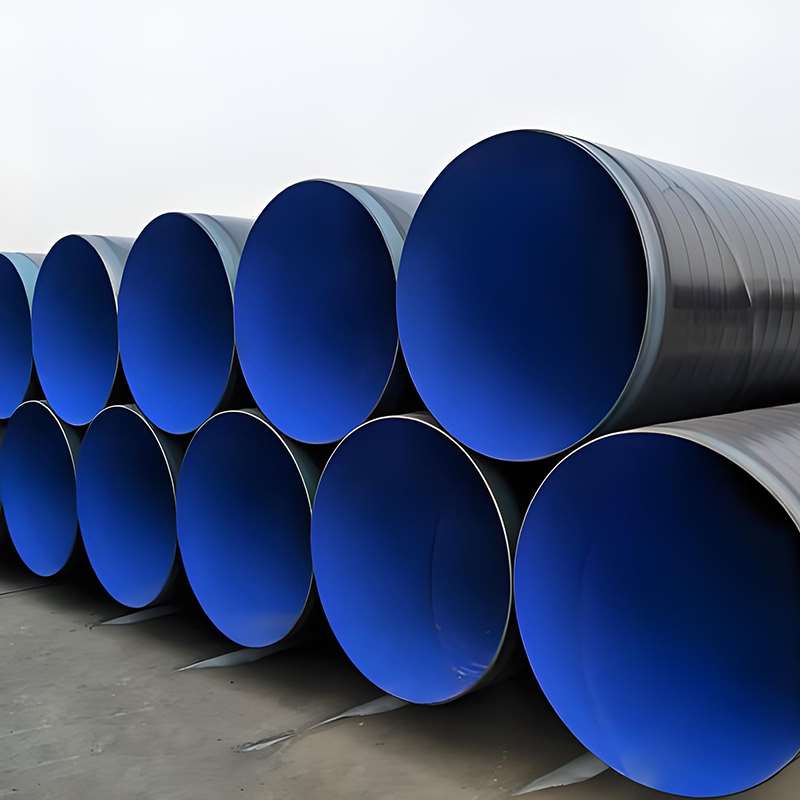

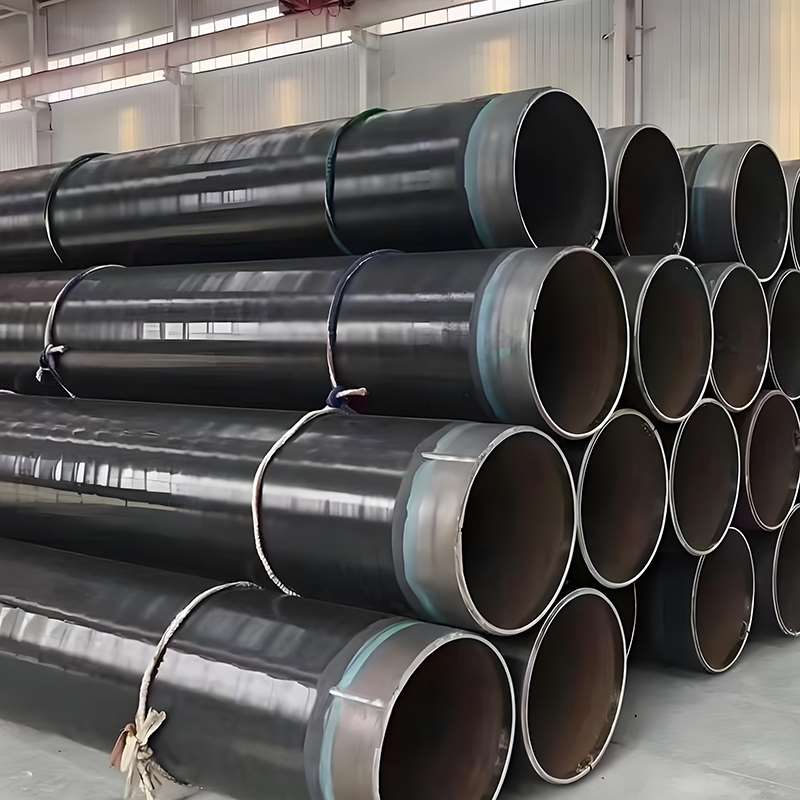

  3PE (Three-Layer Polyethylene) or FBE (Fusion Bonded Epoxy) coatings are applied to form a dense physical barrier against corrosion.
• Cathodic Protection (CP):
  Combined with sacrificial anode or impressed current systems, CP inhibits metal oxidation through electrochemical principles.

3. Internal Medium: The “Invisible Blade” of Acidic Components

The transported medium itself may be corrosive, especially untreated or unprocessed crude oil and natural gas.

Key Risks:
H?S (hydrogen sulfide), CO?, and moisture in the medium can cause hydrogen-induced cracking (HIC) or stress corrosion cracking.

Technical Protection Measures:

• Corrosion-Resistant Material Selection:
  Use sour-service grade steels with excellent resistance to sulfur and hydrogen, such as materials compliant with API 5L sour service specifications.
• Internal Coating Treatment:
  Apply anti-corrosion and drag-reducing internal coatings to protect the pipe wall while also reducing friction resistance and improving flow efficiency.

4. Integrated Safety Management Summary

To ensure long-term operational safety of long-distance pipeline systems, a full life-cycle monitoring framework is strongly recommended:

• Material Traceability:
  Ensure full traceability of chemical composition and mechanical properties for every single pipe.
• Intelligent Monitoring:
  Deploy fiber optic sensing systems and distributed pressure monitoring to enable minute-level leak detection.
• Regular Inspection:
  Use “intelligent pigs” (pipeline inspection gauges) to perform in-line inspection and evaluate wall thickness loss across the entire pipeline.

Expert Insight:
Pipeline safety does not depend solely on steel pipe quality. It relies on a synergistic “coating–steel–monitoring” triple defense system working in full coordination.

IV. Application Environments for Oil and Gas Projects

1. Underground Pipeline Environments

• Most oil and gas transmission pipelines are buried underground, where they are constantly exposed to soil, moisture, and microorganisms, making them susceptible to external corrosion. Consequently, high standards are required for the corrosion resistance and pressure-bearing capacity of steel pipes.

2. Marine and Subsea Engineering Environments

• Marine environments are characterized by high salinity, high humidity, and severe corrosion. Subsea pipelines are subject to long-term seawater erosion, necessitating extremely stringent requirements for coating adhesion, corrosion resistance, and weld quality.

3. Desert Environments

• Desert regions experience significant diurnal temperature fluctuations and are subject to sand and wind abrasion. Steel pipes must not only possess excellent corrosion resistance but also strong resistance to mechanical damage.

4. Extreme Cold and Low-Temperature Environments

• In low-temperature regions, steel pipes must maintain good impact toughness and crack resistance to prevent low-temperature embrittlement from compromising safe pipeline operation.

5. High-Pressure, Long-Distance Transmission Environments

• Cross-regional oil and gas transmission projects typically involve long distances and high pressures, requiring steel pipes to possess stable mechanical properties and long-term operational reliability.

6. High-Corrosion Medium Transmission Environments

• Certain oil and gas media contain corrosive substances such as carbon dioxide (CO?), hydrogen sulfide (H?S), and moisture, placing higher demands on the internal anti-corrosion performance of steel pipes.

V. International Standards for Coated Spiral Steel Pipes

Common Project Standard Combinations:

Different oil and gas projects typically combine multiple standards, such as:

• API 5L + DIN 30670
• (Oil and gas transmission + 3PE corrosion protection)
• API 5L PSL2 + ISO 21809
• (High-grade oil and gas pipelines + international corrosion protection standards)
• API 5L + AWWA C210
• (Water transmission and epoxy coating projects)

For large-scale international oil and gas projects, compliance with third-party inspection requirements is typically also required, such as on-site factory inspections and quality audits by SGS, BV, TüV, or DNV.

VI. FAQ: Frequently Asked Questions About Oil and Gas Pipelines

1. Why Do Oil and Gas Pipelines Corrode?

Corrosion in oil and gas pipelines primarily stems from both external environmental factors and internal media.
External causes include soil moisture, salt content, oxygen, and microbial erosion; internal factors may include corrosive components such as CO?, H?S, and moisture.
Prolonged exposure can lead to thinning of the steel pipe walls or even perforation, so comprehensive protection must be provided through anti-corrosion coatings and cathodic protection systems.

2. Why must oil and gas pipelines use corrosion-resistant steel pipes?

Ordinary steel pipes are prone to rapid corrosion in buried or marine environments, whereas oil and gas pipelines typically need to operate for 20–50 years. Corrosion-resistant steel pipes (such as 3PE, FBE, and TPEP) effectively isolate corrosive media, reducing rust formation, thereby ensuring long-term safe operation of the pipeline and lowering maintenance costs.

3. What is the difference between 3PE and FBE corrosion protection?

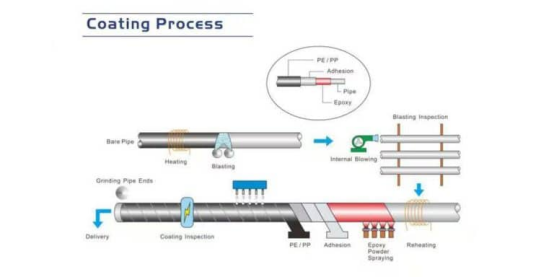

3PE corrosion protection features a three-layer structure (epoxy powder + adhesive + polyethylene), offering superior mechanical protection and making it suitable for long-distance buried pipelines; FBE is a single-layer epoxy coating with excellent chemical corrosion resistance, making it suitable for high-temperature or specific medium environments. Generally speaking, 3PE is more suitable for most long-distance oil and gas transmission projects.

4. What are the practical implications of PSL1 and PSL2 pipes?

PSL1 is a basic quality grade suitable for standard operating conditions; PSL2 is a higher grade requiring stricter control of chemical composition, impact toughness testing, and non-destructive testing.
For high-pressure, offshore, or long-distance oil and gas pipelines, PSL2 is typically required to ensure safety.

5. What are the most common causes of failure in oil and gas pipelines?

There are three main categories: corrosion failure (the most common), weld defects (such as lack of fusion or cracks), and external damage (construction damage or geological movement).
Corrosion issues account for the highest proportion, so the design and construction quality of the anti-corrosion system are critical.

6. How can one determine if the quality of an oil and gas pipeline is reliable?

This is primarily assessed based on four factors:

• Compliance with API 5L or ISO 3183 standards
• Passing non-destructive testing (UT/RT) and hydrostatic testing
• Coating thickness and adhesion meeting specifications
• Availability of complete quality traceability documentation (MTC reports)

High-quality pipelines are also typically certified by third-party inspection agencies (such as SGS, BV, or TüV) to ensure compliance with international engineering requirements.

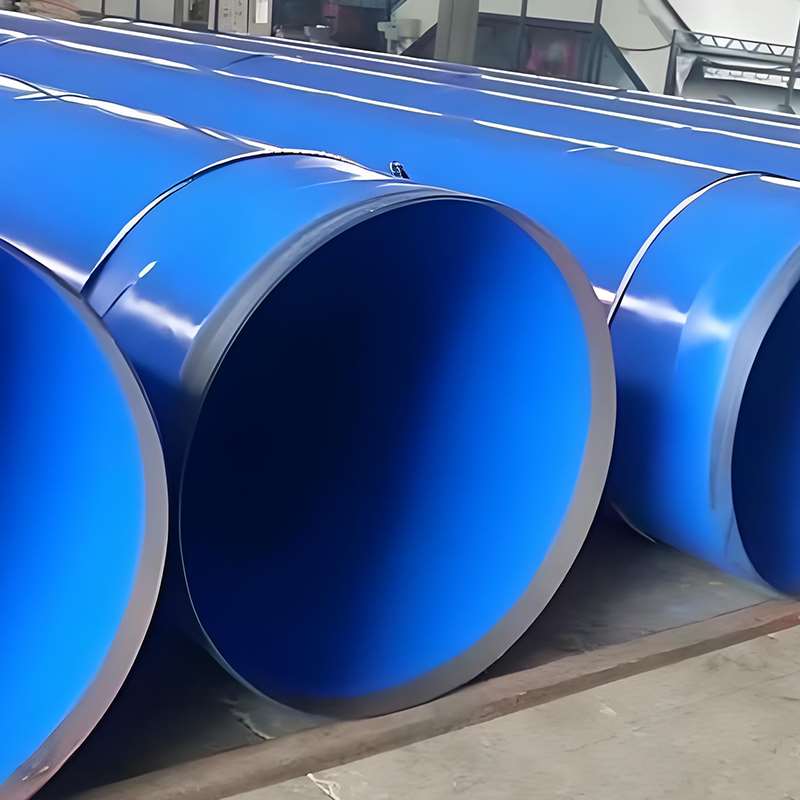

In large diameter coated spiral steel pipes, carbon steel is one of the most commonly used base materials. Its value lies not only in its chemical composition, but more importantly in its structural strength, manufacturing adaptability, and cost efficiency.

1. Excellent Structural Strength for Pressure-Bearing Applications

Carbon steel offers high tensile strength and strong pressure-bearing capacity, fully meeting the requirements of water transmission, oil transportation, and industrial pipeline systems.

In long-distance pipeline projects, carbon steel spiral steel pipes maintain stable structural performance, effectively reduce deformation risks, and are suitable for medium to high-pressure operating environments.

2. Well-Suited for Large Diameter and Long-Distance Pipeline Systems

Compared with certain higher-grade materials, carbon steel is more easily formed into spiral-welded structures, making it particularly suitable for:

• Large diameter pipelines (medium to large size range)
• Long-distance transmission pipelines
• Municipal and energy infrastructure projects

This strong manufacturing adaptability makes it a mainstream choice in large-scale pipeline network construction.

3. Cost-Effective and Ideal for Project Budget Optimization

Carbon steel is widely available and benefits from mature processing technologies, which ensures a strong cost advantage while maintaining reliable performance.

In large-scale engineering projects, this balance between performance and cost is particularly important, as it effectively reduces the overall investment in pipeline systems.

II. Carbon Steel Corrosion Issues and Corrosion Protection Solutions

In the practical application of carbon steel spiral welded pipes, different engineering environments can lead to various types of corrosion issues. Therefore, selecting the appropriate corrosion protection solution is key to ensuring the long-term, stable operation of the pipeline.

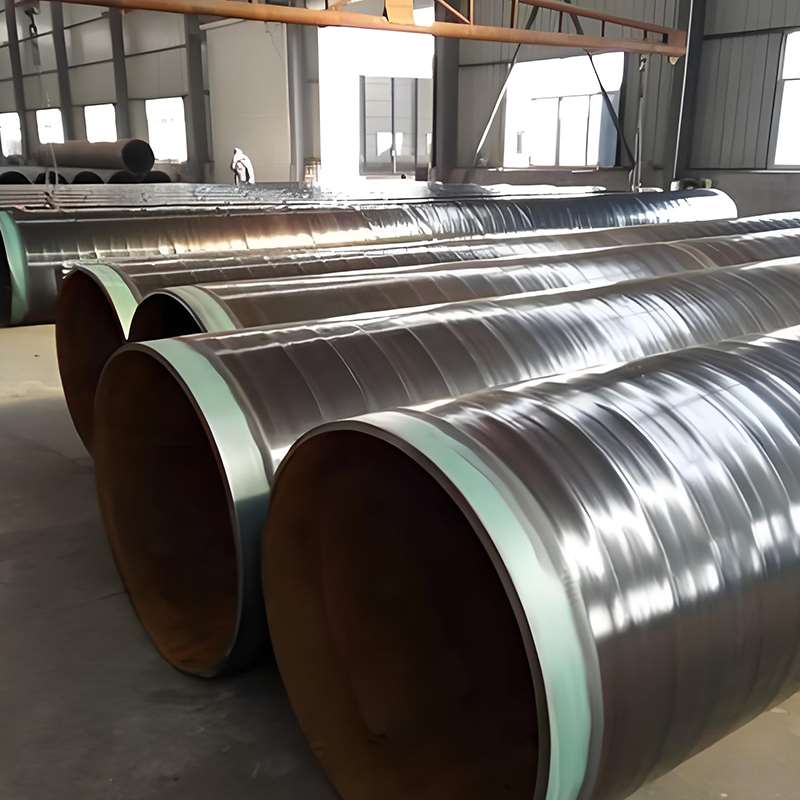

1. Buried Soil Environments (Underground Pipelines)

• Common Applications:
  Urban water supply, oil transmission pipelines, long-distance underground pipelines
• Common Corrosion Issues:
  Electrochemical corrosion caused by soil moisture and oxygen
  Accelerated rusting in saline-alkali soil
  Rapid localized corrosion following damage to the protective coating
• Recommended Corrosion Protection Solution:

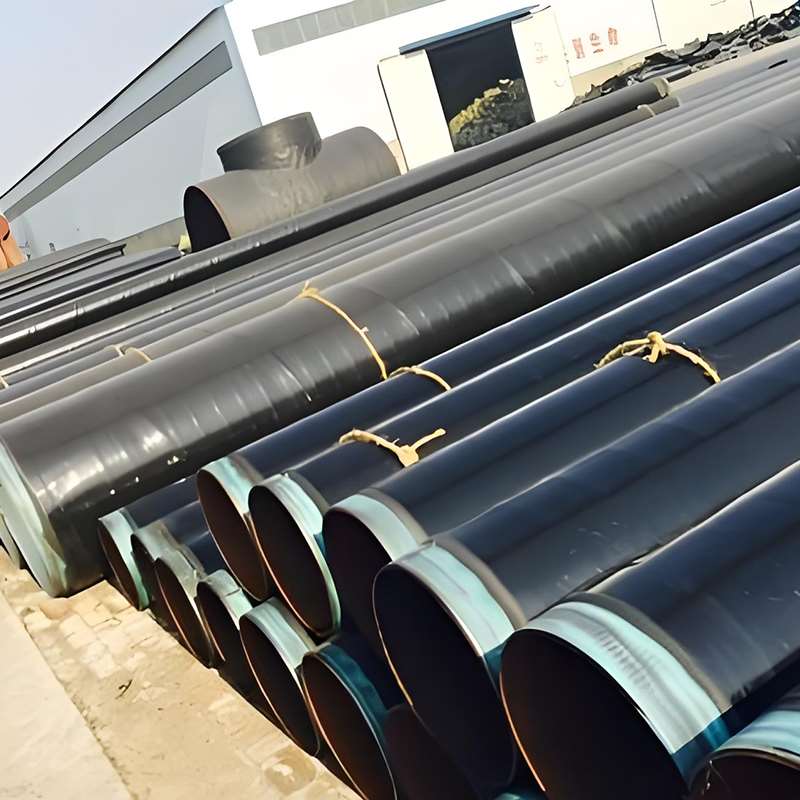

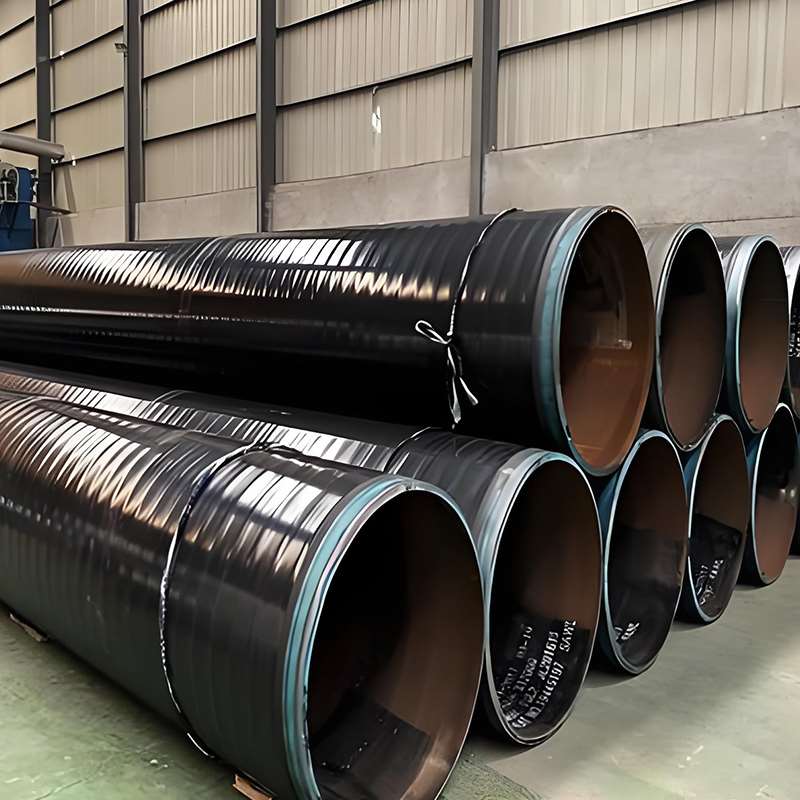

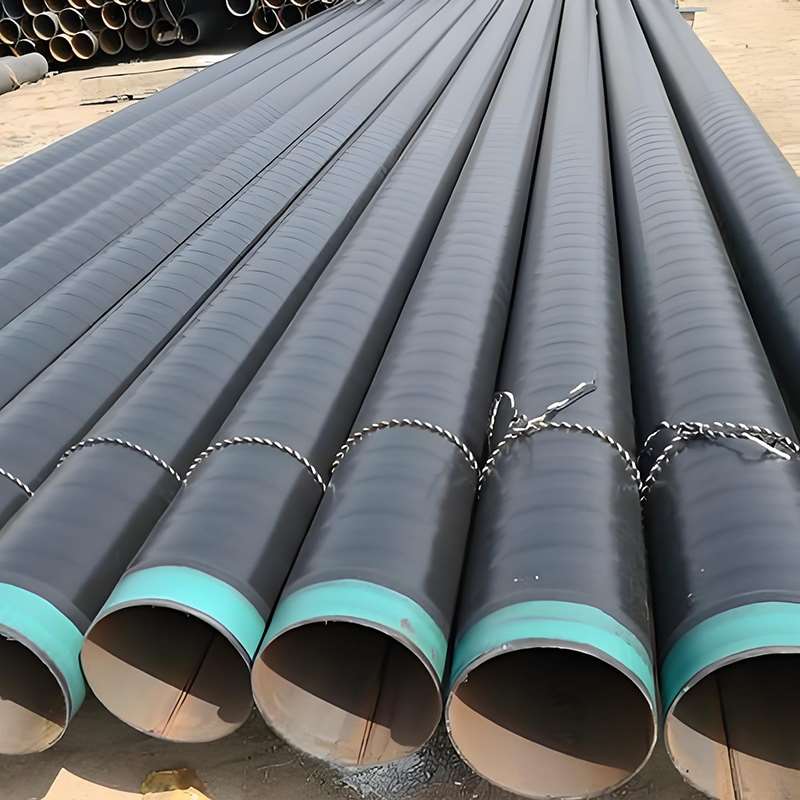

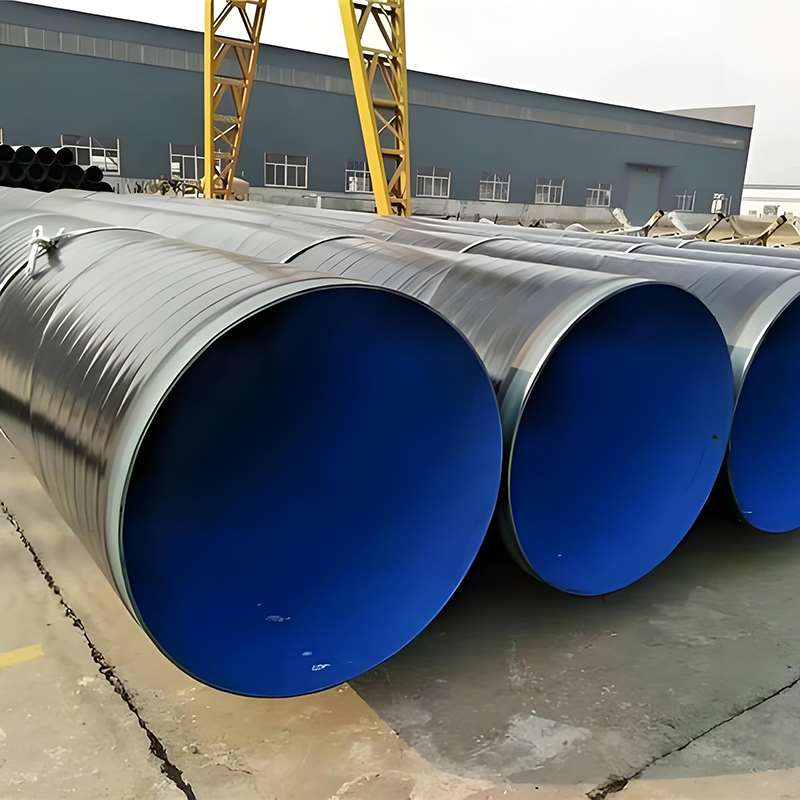

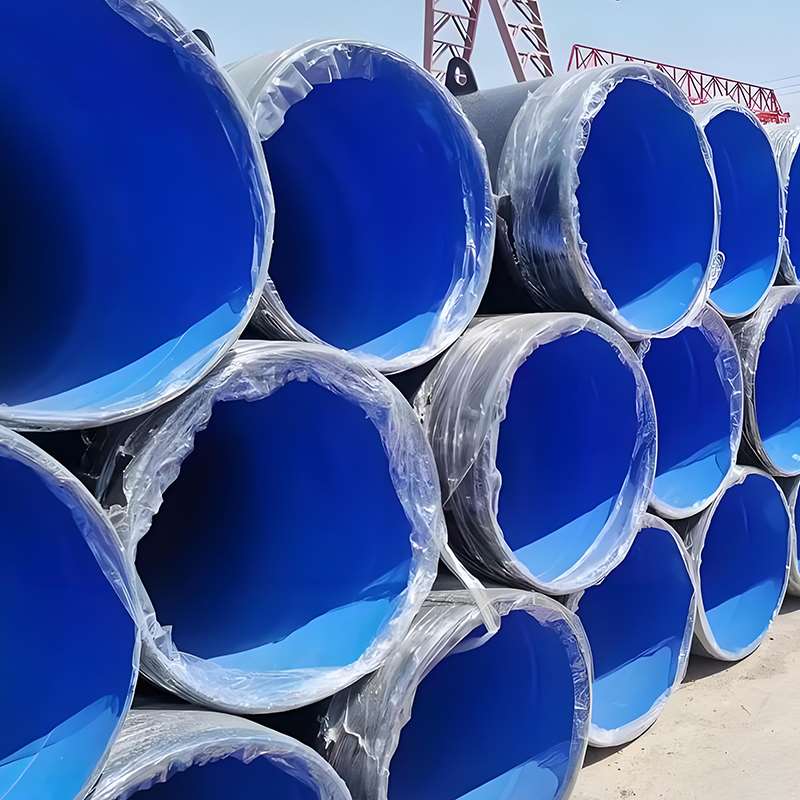

  3PE-coated steel pipes
• Description:
  The 3PE structure effectively isolates moisture, oxygen, and soil corrosion media, making it the most commonly used corrosion protection method for long-distance buried pipelines.

2. Coastal and Marine Environments

• Common Applications:
  Port engineering, seawater conveyance, marine infrastructure
• Common Corrosion Issues:
  Rapid oxidation caused by high salt fog environments
  Highly corrosive chloride ions
  Accelerated aging of the anti-corrosion coating
• Recommended Corrosion Protection Solution:
  Reinforced 3PE anti-corrosion or high-grade FBE anti-corrosion systems
• Description:
  Marine environments are extremely corrosive and require higher-grade protection systems to enhance resistance to salt fog and durability.

3. Industrial and Chemical Environments

• Common Applications:
  Chemical plant pipelines, industrial fluid transport systems
• Common Corrosion Issues:
  Chemical corrosion caused by acidic and alkaline media
  High risk of internal wall corrosion
  Coexistence of localized and uniform corrosion
• Recommended Corrosion Protection Solution:

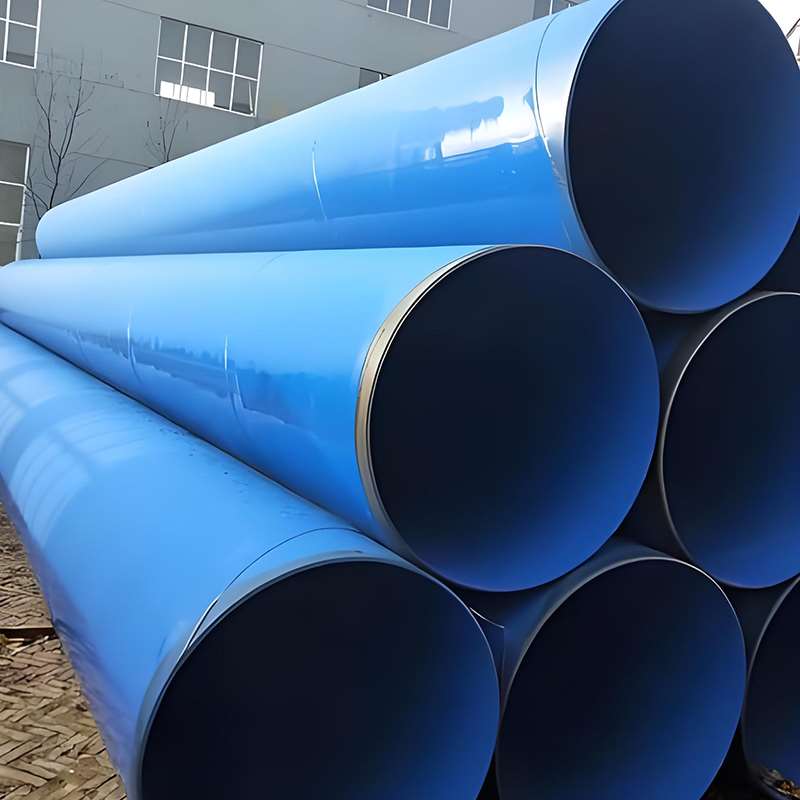

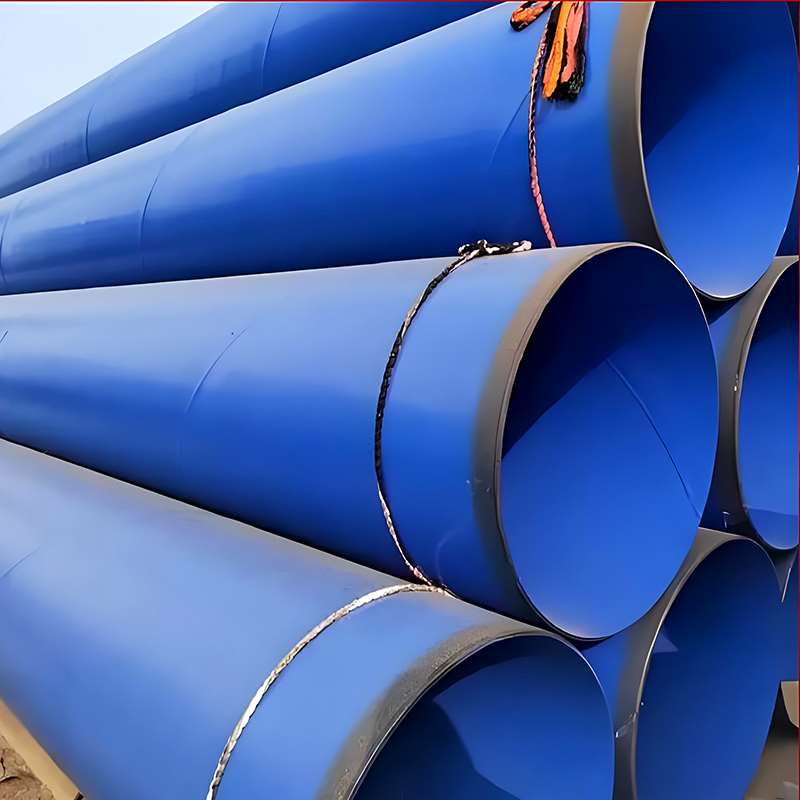

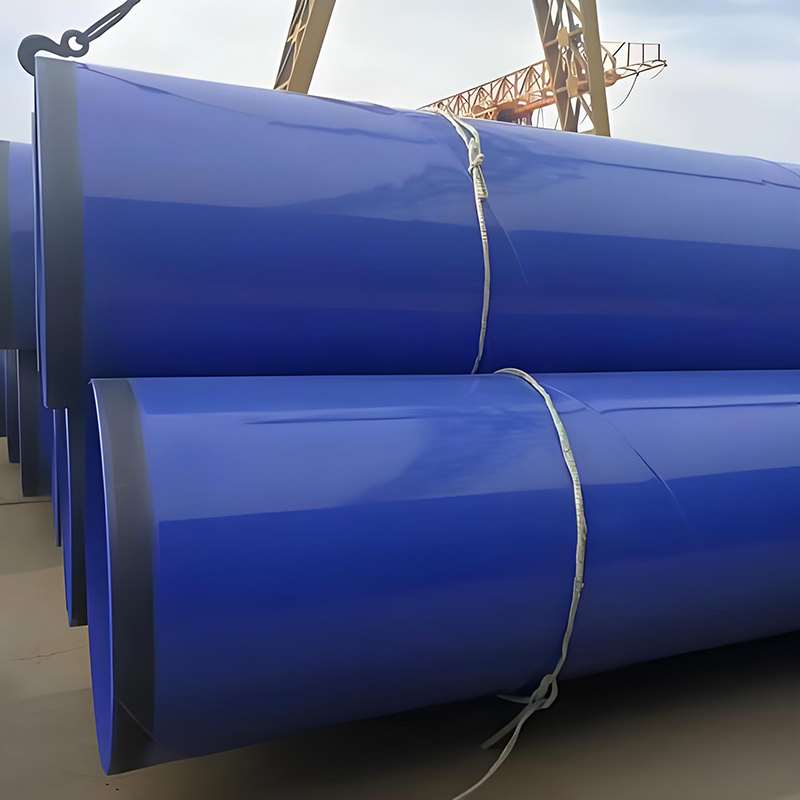

  Steel pipes with FBE epoxy powder coating
• Description:
  FBE coatings offer excellent chemical stability and adhesion, making them suitable for highly corrosive industrial environments.

4. Long-Distance Water Transmission Projects

• Common Applications:
  Urban water supply, water diversion projects, industrial circulating water systems
• Common Corrosion Issues:
  Slow corrosion caused by prolonged contact of inner walls with water
  Oxidation reactions caused by dissolved oxygen in water
  Decreased efficiency after long-term operation
• Recommended Corrosion Protection Solution:
  Combined internal and external corrosion protection system (FBE or 3PE)
• Description:
  Dual internal and external protection reduces the risk of internal corrosion, improves transmission efficiency, and extends service life.

5. General Municipal and Infrastructure Projects

• Common Applications:
  Municipal drainage, general conveyance networks
• Common Corrosion Issues:
  Corrosion in moderately humid environments
  Surface rust caused by prolonged exposure
• Recommended Corrosion Protection Solution:
  Steel pipes with epoxy-coal tar anti-corrosion coating
• Description:
  Suitable for moderately corrosive environments, offering high cost-effectiveness and ideal for budget-constrained projects.

III. Balancing Cost and Durability

In the procurement of carbon steel spiral welded pipes for engineering projects, price is often the most obvious consideration. However, what truly impacts a project’s long-term costs is not the unit price, but rather the pipe’s overall service life and maintenance costs.

If one opts solely for low-cost pipes with no corrosion protection or only low-grade protection, the initial investment may be lower, but actual operation may require more frequent maintenance—such as corrosion repairs, partial replacements, or even pipeline shutdowns—thereby increasing the overall project cost.

Conversely, carbon steel spiral welded pipes with anti-corrosion coatings such as 3PE or FBE, while having a relatively higher initial cost, can significantly reduce corrosion risks, minimize maintenance frequency, and extend the pipeline’s service life, making them more cost-effective in the long run.

1. The Importance of Life Cycle Cost

In large-scale water, oil, and industrial pipeline projects, procurement decisions typically focus not only on material costs but also on evaluating the total life cycle cost (LCC), which includes:

• Initial procurement costs
• Installation and construction costs
• Maintenance and repair costs
• Replacement and shutdown costs

In many engineering projects, carbon steel spiral welded pipes with excellent anti-corrosion performance can often significantly reduce total costs over the long term.

2. Corrosion Protection Is Key to Reducing Long-Term Costs

Carbon steel inherently possesses good strength and workability, but corrosion issues directly impact its service life. Therefore, the value of a corrosion protection system lies not merely in “protecting the steel pipe,” but more importantly in:

• Extending service life
• Reducing maintenance frequency
• Lowering overall operating costs

3. How to Achieve a Balance Between Cost and Durability?

• Low-corrosion environments → Choose an economical anti-corrosion solution
• Moderate-corrosion environments → Choose a standard anti-corrosion system
• High-corrosion environments → Choose a reinforced anti-corrosion system

The key is not “the cheapest,” but “the most cost-effective over the life cycle.”

IV. Mechanisms for Extending Service Life

The service life of carbon steel spiral welded pipes is not fixed but is determined by a combination of the material itself, the corrosion protection system, construction quality, and the operating environment. In engineering practice, the overall service life of the pipeline can be significantly extended through proper protective design.

1. Corrosion Control Is the Key Factor in Extending Service Life

• Among all influencing factors, corrosion is the primary cause of steel pipe failure. Whether in buried, marine, or industrial environments, moisture, oxygen, and chemicals gradually erode the surface of steel pipes.
• Therefore, controlling the corrosion rate is a key prerequisite for extending service life.

2. Anti-corrosion Coatings Form a Long-Term Protective Barrier

Modern carbon steel spiral welded pipes typically achieve extended service life through external anti-corrosion coating systems, such as 3PE or FBE coatings.

The functions of these anti-corrosion layers are:

• To isolate moisture and oxygen
• Preventing corrosive media from contacting the steel
• Reducing the rate of electrochemical reactions

Through this physical isolation mechanism, the corrosion process of steel pipes can be significantly slowed, thereby extending their overall service life.

3. Construction and Transportation Quality Also Affect Service Life

Even with high-grade anti-corrosion systems, damage to the protective coating during transportation or installation can create potential corrosion hazards later on.

Factors that contribute to this include:

• Impact during lifting
• Damage from dragging on the ground
• Failure to promptly apply anti-corrosion protection to weld joints
• Scratches to the coating during backfilling

Therefore, standardized construction practices and protective measures are also crucial components of service life management.

4. Correct Selection Determines Final Service Life

Different corrosion protection grades should be selected for different engineering environments:

• Buried long-distance pipelines → 3PE corrosion protection system
• Chemical and highly corrosive environments → FBE corrosion protection system
• General municipal engineering → Cost-effective corrosion protection solutions

Appropriate selection can avoid “over-engineering” or “insufficient protection,” achieving a balance between service life and cost.

V. Engineering Procurement FAQ

1. What types of projects are carbon steel coated spiral steel pipes mainly used for?

Carbon steel coated spiral steel pipes are primarily used in large diameter, long-distance transmission projects, especially where both structural strength and corrosion resistance are required.

Typical applications include:

• Long-distance oil and natural gas transmission pipelines
• Urban water supply and water diversion projects
• Industrial fluid transportation systems
• Energy and infrastructure development projects

In practical engineering use, they are commonly selected for pipeline systems that require a balance of high strength, cost efficiency, and long service life.

2. Why do carbon steel pipes need anti-corrosion protection?

Although carbon steel offers excellent mechanical strength, it is susceptible to corrosion in humid, soil, or chemically aggressive environments.

The main purposes of applying anti-corrosion coatings (such as 3PE or FBE) include:

• Isolating moisture, oxygen, and corrosive media
• Slowing down the corrosion rate of steel
• Reducing long-term maintenance and repair costs
• Significantly extending pipeline service life

Without proper anti-corrosion protection, carbon steel pipes are generally only suitable for short-term or low-demand applications.

3. What is the difference between 3PE and FBE coatings? How should they be selected?

The two coating systems are designed for different operating environments:

3PE Coating (Three-Layer Polyethylene System)

• Best suited for buried pipelines and long-distance transmission projects
• Provides excellent mechanical protection and soil corrosion resistance

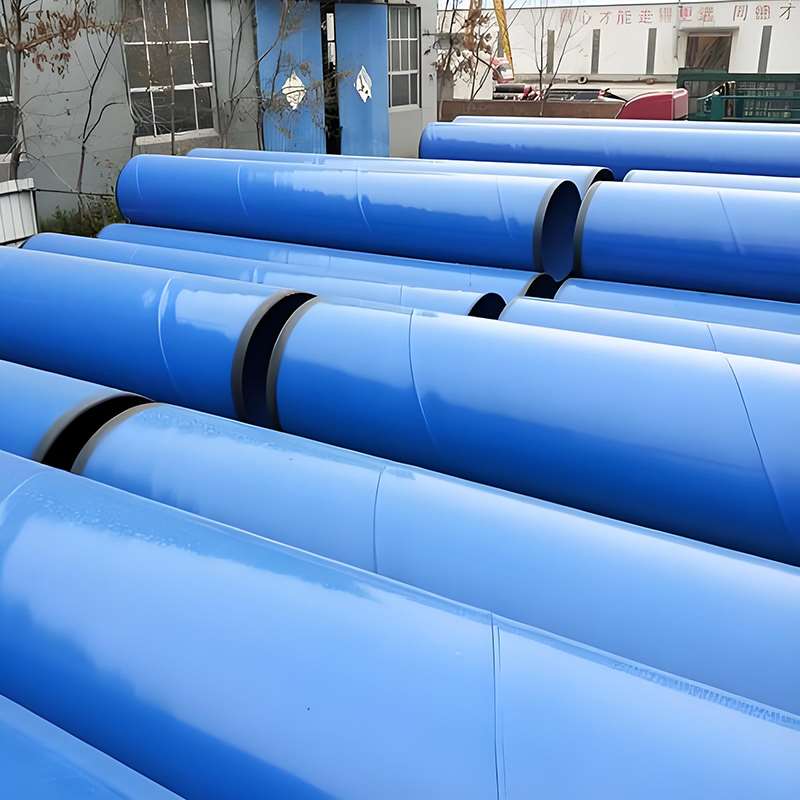

FBE Coating (Fusion Bonded Epoxy)

• Suitable for chemical and highly corrosive industrial environments
• Offers superior adhesion and strong chemical resistance

Simple selection guideline:

• Buried pipelines / long-distance transmission → 3PE coating
• Chemical / highly corrosive environments → FBE coating

4. What is the typical service life of coated carbon steel spiral pipes?

The service life mainly depends on coating type, installation quality, and operating environment.

Under standard engineering conditions:

• The service life of coated carbon steel spiral steel pipes is typically 20–50 years

Key factors affecting service life include:

• Coating grade and thickness
• Quality of installation and construction
• Damage to the coating during handling or installation
• Severity of the operating environment

With proper material selection and correct installation practices, the service life can be significantly extended.

5. Which anti-corrosion system is recommended for buried pipelines?

For buried pipeline projects, the 3PE anti-corrosion system is the most commonly used and highly recommended solution.

Its advantages include:

• Excellent resistance to soil moisture and corrosive media
• Strong impact resistance, suitable for backfilling operations
• Ideal for long-distance transmission pipelines
• Reliable performance in highly corrosive soils (such as saline-alkali soil and high-humidity regions)

For highly aggressive environments, an enhanced or heavy-duty 3PE coating system is typically recommended.

6. Can coated steel pipes be used in marine or port engineering projects?

Yes, but the coating system must be selected according to the environmental severity.

In marine and coastal environments, the main corrosive factors include:

• High salt spray exposure
• High humidity levels
• Strong chloride ion corrosion

Recommended solutions include:

• High-grade 3PE coated steel pipes
• Customized heavy-duty anti-corrosion systems based on project requirements

The key requirement is long-term resistance to salt spray and corrosion. Without adequate protection, the service life of the pipeline will be significantly reduced.

Large Diameter Coated Spiral Steel Pipe is a high-performance pipeline manufactured using the Spiral Submerged Arc Welding (SSAW) process and enhanced with protective anti-corrosion coatings on the internal and external surfaces.

Designed for demanding fluid transportation applications, this product is widely used in water transmission projects, oil and gas pipeline systems, municipal utility networks, and large-scale infrastructure developments. It offers excellent structural strength, large diameter capabilities, cost-effective installation, and an extended service life, making it an ideal choice for long-distance and high-volume pipeline projects.

II. Product Structure

Large-diameter coated spiral steel pipes typically consist of a base pipe, a weld seam, and internal and external anti-corrosion coatings. The specific configuration can be tailored to different projects based on the transported medium (e.g., water, oil, or natural gas).

1. Steel Pipe Body
   The main body of the steel pipe is manufactured from hot-rolled steel coil and serves as the core pressure-bearing structure of the entire pipeline.
   Material: Steel grades compliant with API 5L, ASTM, EN, and GB standards (e.g., Gr. B, X52, X60, etc.)
   Forming Method: Submerged arc spiral welding (SSAW)
   Function: Provides overall strength and pressure-bearing capacity
   Features: High material utilization; suitable for large-diameter production

2. Spiral Weld Structure
   The key structural feature of spiral welded steel pipes is that the welds are arranged in a spiral pattern.
   Welding method: Double-sided submerged arc welding
   Weld location: Continuously distributed along the spiral direction of the pipe
   Advantages:
   More uniform stress distribution
   Suitable for the production of large-diameter pipes
   High production efficiency

3. Internal Corrosion Protection Layer
   Depending on the transported medium, different internal corrosion protection structures can be selected:
   Common types:
   Cement mortar lining
   Used in water conveyance projects
   Prevents scaling and corrosion

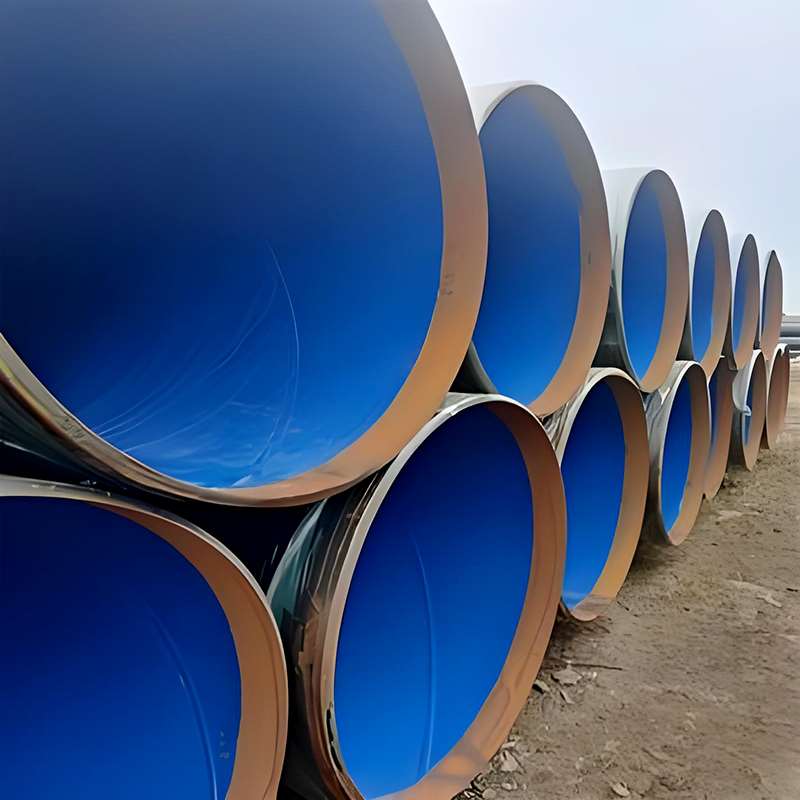

   Epoxy coating (FBE / Epoxy Coating)
   Used for oil, gas, or chemical media
   High resistance to chemical corrosion
   Function: Protects the inner wall of the pipeline, reduces frictional resistance, and extends service life

4. External Anti-Corrosion Coating
   The external anti-corrosion coating is a critical protective layer for underground or outdoor projects.
   Common configurations:

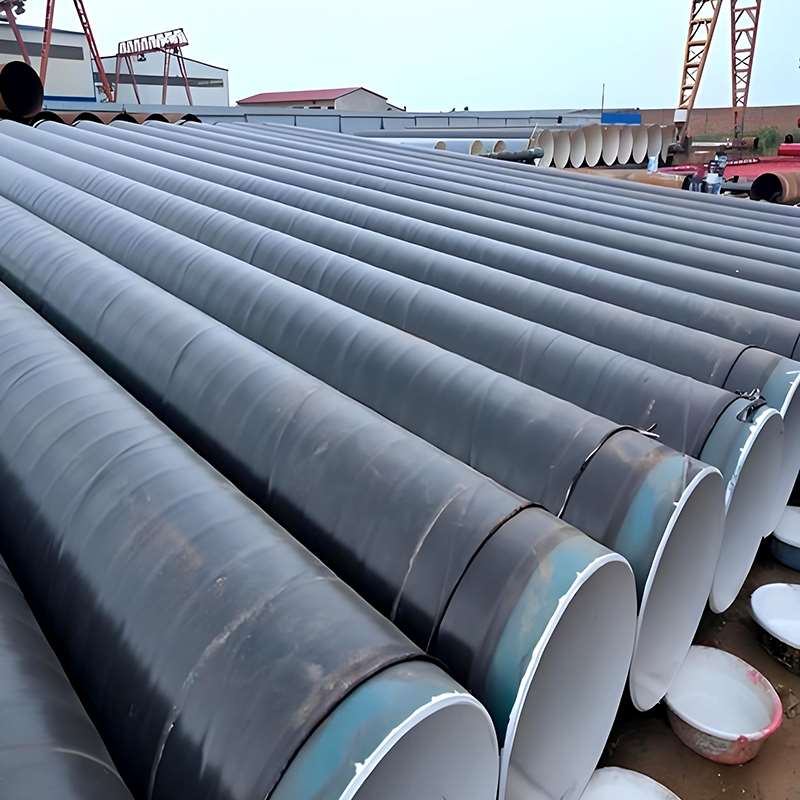

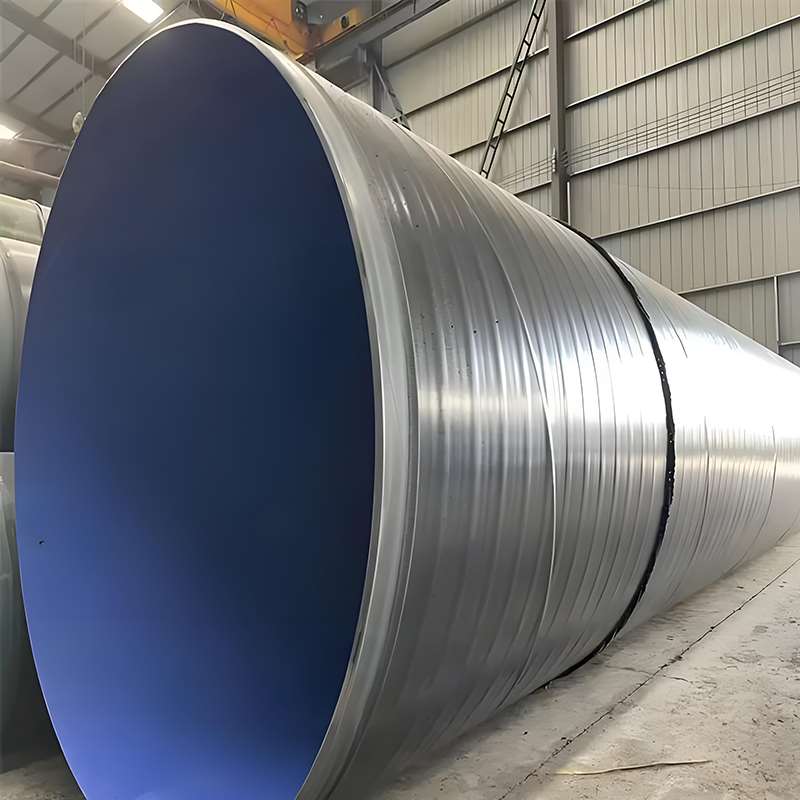

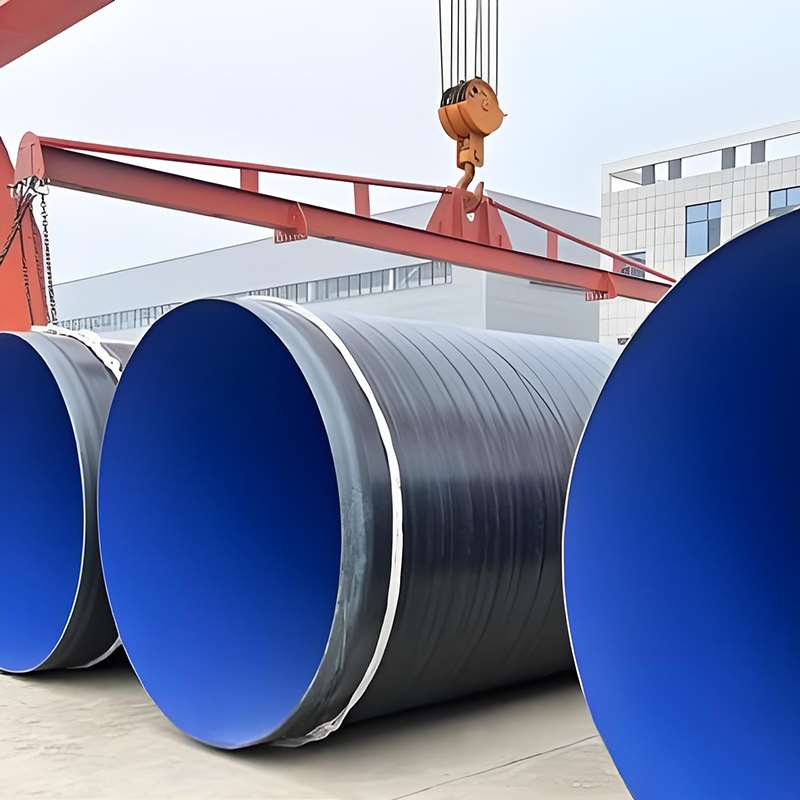

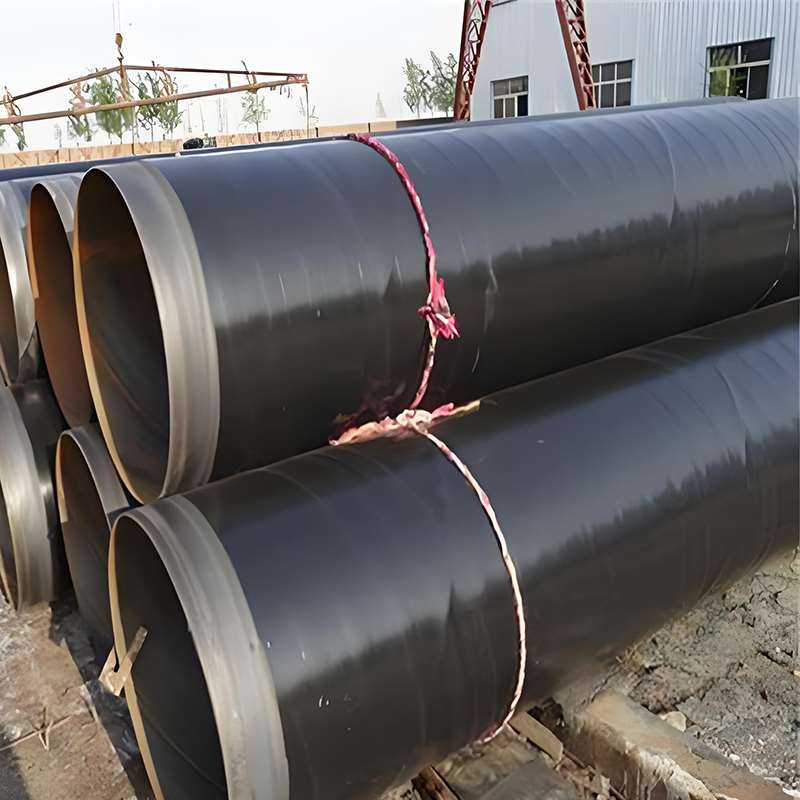

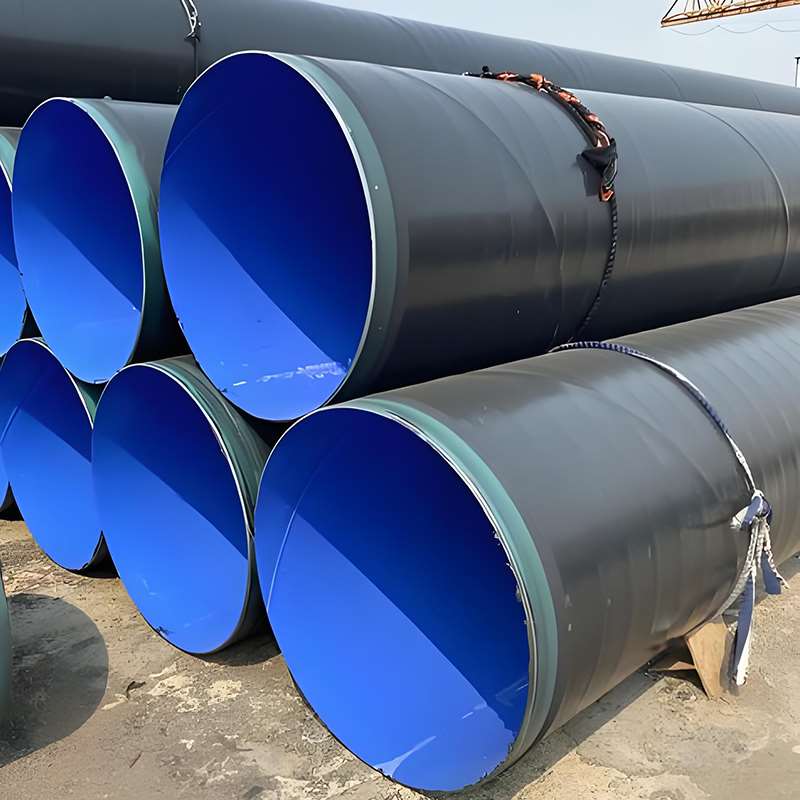

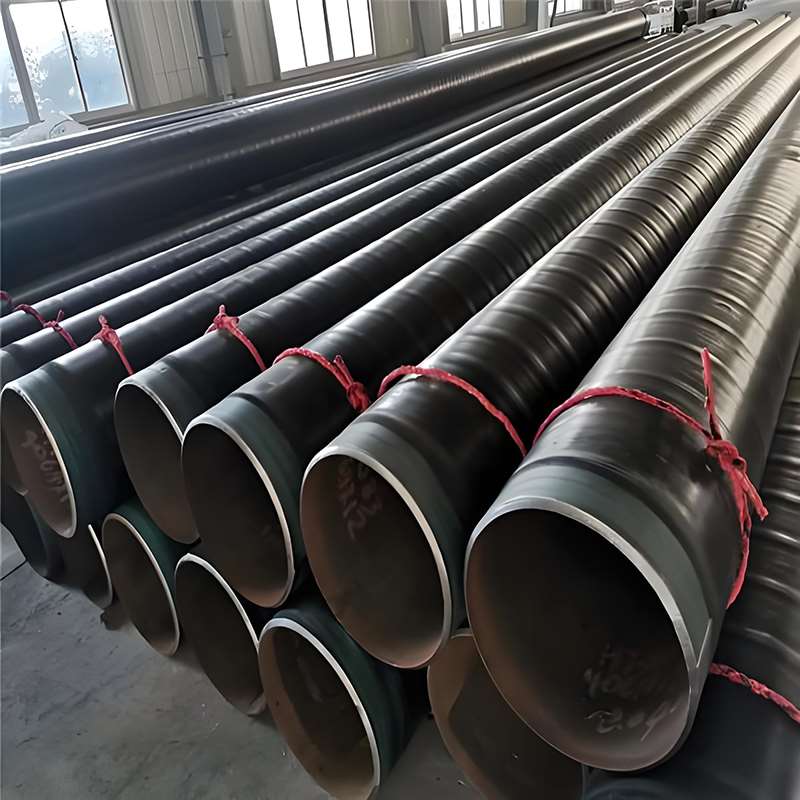

   3PE Anti-Corrosion Coating (3-layer Polyethylene Coating)
   Anti-corrosion + Impact resistance + Water resistance
   The mainstream solution for underground pipelines

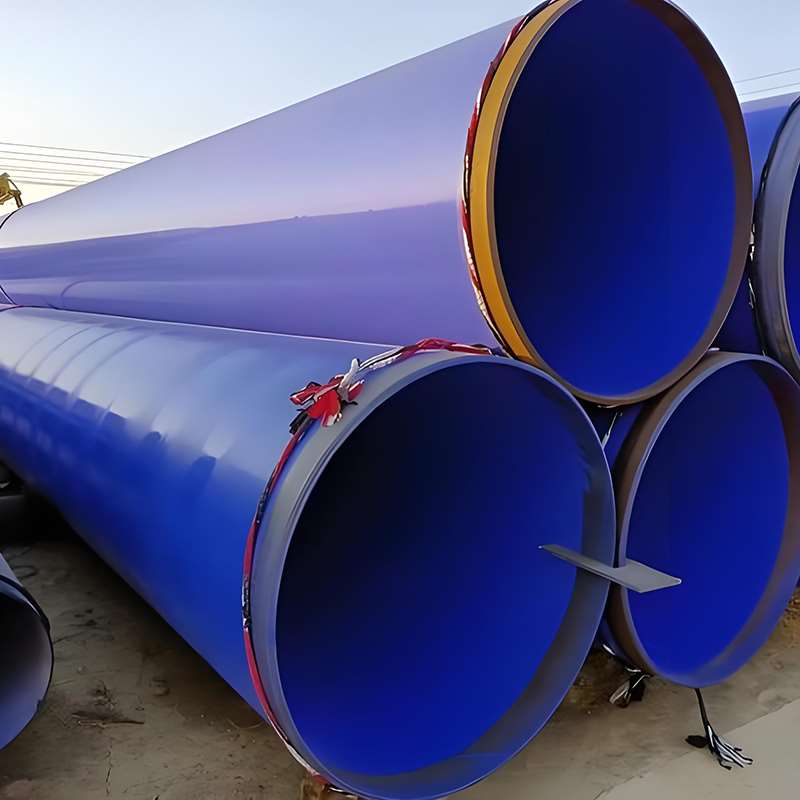

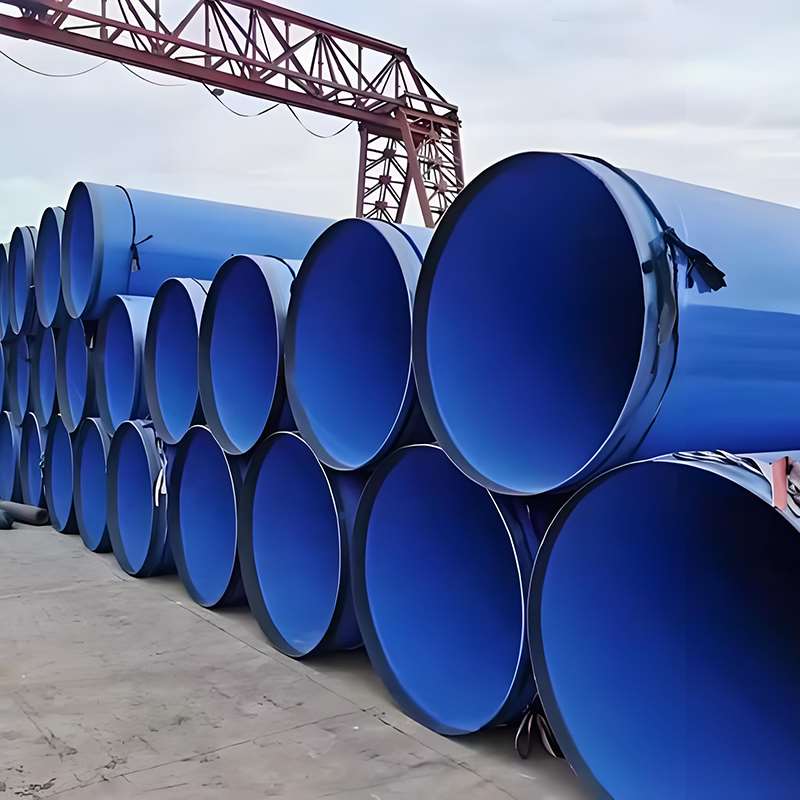

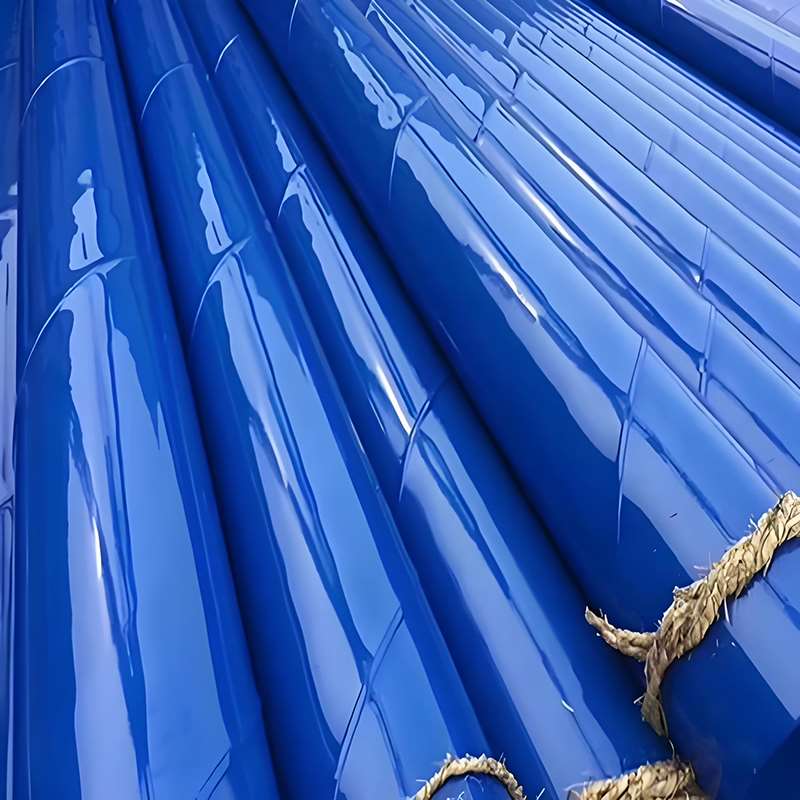

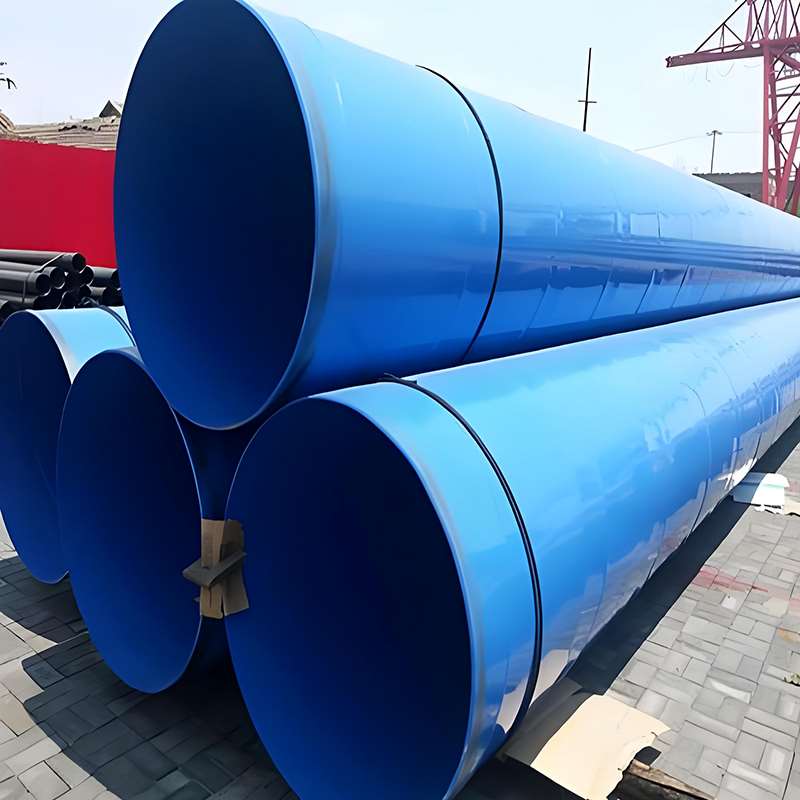

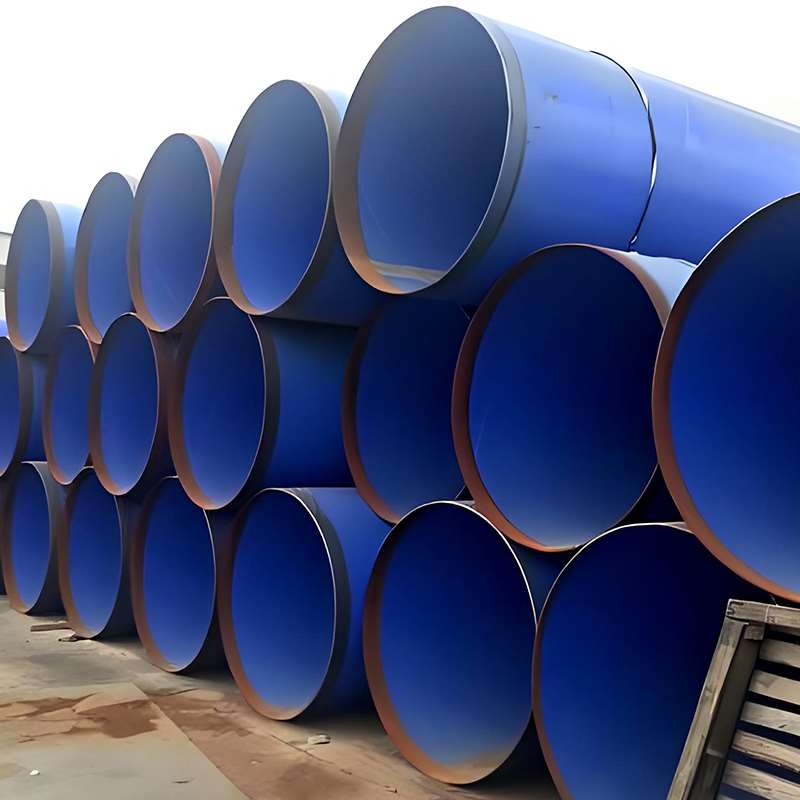

   FBE Epoxy Powder Coating
   Strong adhesion
   Suitable for highly corrosive environments
   Function: Prevents soil corrosion, moisture erosion, and mechanical damage

5. Pipe End Preparation
   To meet on-site installation requirements, pipe ends are typically prepared in standardized ways:
   Plain End
   Beveled End
   Flanged End (optional)
   Purpose: To improve on-site welding efficiency and connection quality

III. Application Background of Large Diameter Coated Spiral Steel Pipe

Why Modern Large-Scale Projects Require Large Diameter Steel Pipes

With the rapid development of urbanization, energy transportation networks, and industrial infrastructure, water transmission, oil transportation, and industrial fluid conveyance systems are demanding increasingly higher pipeline capacities.

Compared with smaller-diameter pipelines, large diameter coated spiral steel pipes offer several significant advantages:

• Higher flow capacity for large-volume transportation
• Improved efficiency in long-distance transmission systems
• Reduced pumping station operating frequency and energy consumption
• Fewer parallel pipeline installations required
• Lower overall project construction and maintenance costs
• Better suitability for large-scale infrastructure developments

As a result, large diameter spiral steel pipes have become one of the preferred pipeline solutions for modern water transmission projects, oil and gas transportation systems, energy infrastructure, and municipal engineering applications.

The Growing Importance of Corrosion Protection

In addition to transportation capacity, corrosion resistance has become a critical consideration as pipeline systems are increasingly installed underground, exposed to harsh environmental conditions, and expected to operate reliably for decades.

By applying internal and external anti-corrosion coatings, the pipeline can achieve:

• Enhanced resistance to corrosion and environmental degradation
• Extended service life
• Improved operational reliability and safety
• Reduced maintenance requirements and lifecycle costs
• Better long-term performance in demanding service environments

For these reasons, coated large diameter spiral steel pipes are widely adopted in infrastructure projects where durability, reliability, and long-term operational stability are essential.

IV. Applications in Large-Scale Infrastructure Projects

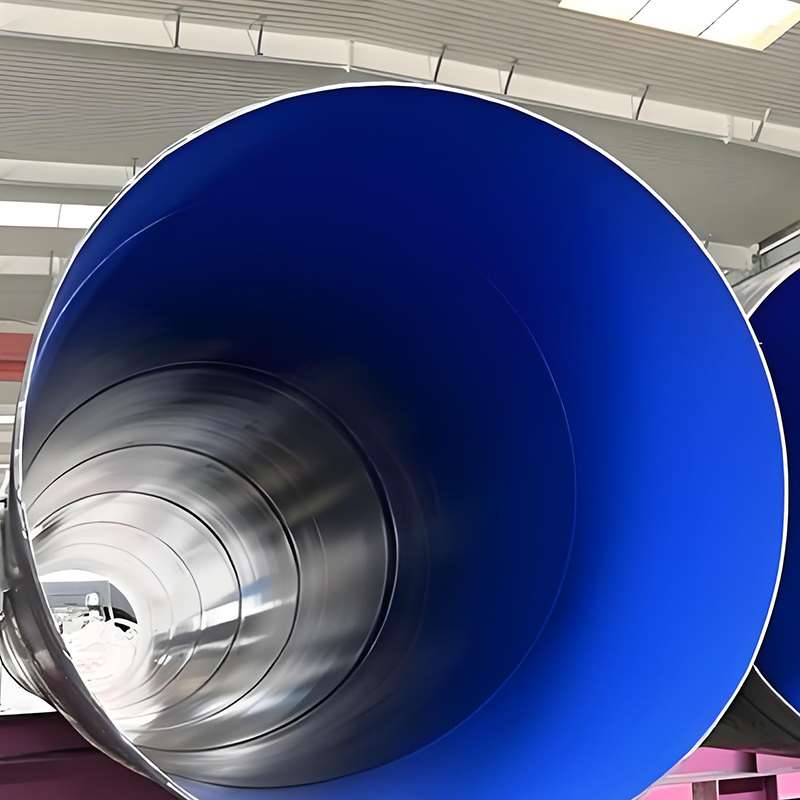

1. Water Transmission Projects

Large Diameter Coated Spiral Steel Pipe is widely used in a variety of water transportation applications, including:

• Municipal water supply systems
• Long-distance water diversion projects
• Agricultural irrigation pipelines
• Seawater desalination transmission systems
• Industrial circulating water systems

In water transmission projects, the internal anti-corrosion lining helps reduce flow resistance, improve hydraulic efficiency, and minimize scale buildup during long-term operation.

The external anti-corrosion coating provides effective protection against soil moisture, groundwater, and corrosive substances, significantly extending the service life of buried pipelines.

For high-volume water transportation projects, large diameter spiral steel pipes offer the required flow capacity while helping reduce overall construction, operation, and maintenance costs.

2. Oil and Natural Gas Transportation

In the oil and gas industry, large diameter coated spiral steel pipes are commonly used for:

• Crude oil transmission pipelines
• Long-distance natural gas pipelines
• Oil and gas gathering and transportation systems
• Refinery and petrochemical process pipelines

Oil and gas transportation systems typically involve long transmission distances, high operating pressures, and challenging environmental conditions. As a result, pipeline strength and corrosion resistance are critical performance requirements.

By utilizing advanced coating systems such as 3PE (Three-Layer Polyethylene), FBE (Fusion Bonded Epoxy), and Coal Tar Epoxy coatings, the pipeline can achieve enhanced durability in buried, humid, and corrosive environments.

In addition, SSAW spiral steel pipes offer significant cost advantages in large-diameter production, making them an economical choice for major long-distance pipeline projects.

3. Marine and Port Engineering

Large diameter coated spiral steel pipes are extensively used in marine and coastal infrastructure projects, including:

• Seawater transportation systems
• Port and harbor construction
• Offshore and marine piling foundations
• Subsea pipeline projects

Marine environments are characterized by high salinity, high humidity, and severe corrosion risks, placing stringent requirements on pipeline protection systems.

Heavy-duty anti-corrosion coating systems effectively resist seawater corrosion, salt spray exposure, and moisture penetration, helping to extend the operational life of the pipeline and reduce maintenance requirements.

4. District Heating and Industrial Pipeline Systems

Large diameter coated steel pipes are also widely applied in:

• District heating networks
• Thermal power plant pipeline systems
• Chemical processing pipelines
• Industrial fluid transportation systems

In environments involving elevated temperatures, high humidity, or corrosive media, anti-corrosion coatings play a vital role in minimizing corrosion risks, reducing maintenance costs, and ensuring long-term operational reliability.

For large-scale industrial projects, SSAW spiral steel pipes provide an excellent combination of high strength, efficient manufacturing, and cost-effective project execution, making them a preferred solution for demanding pipeline applications.

V. Challenges in Transportation and Installation

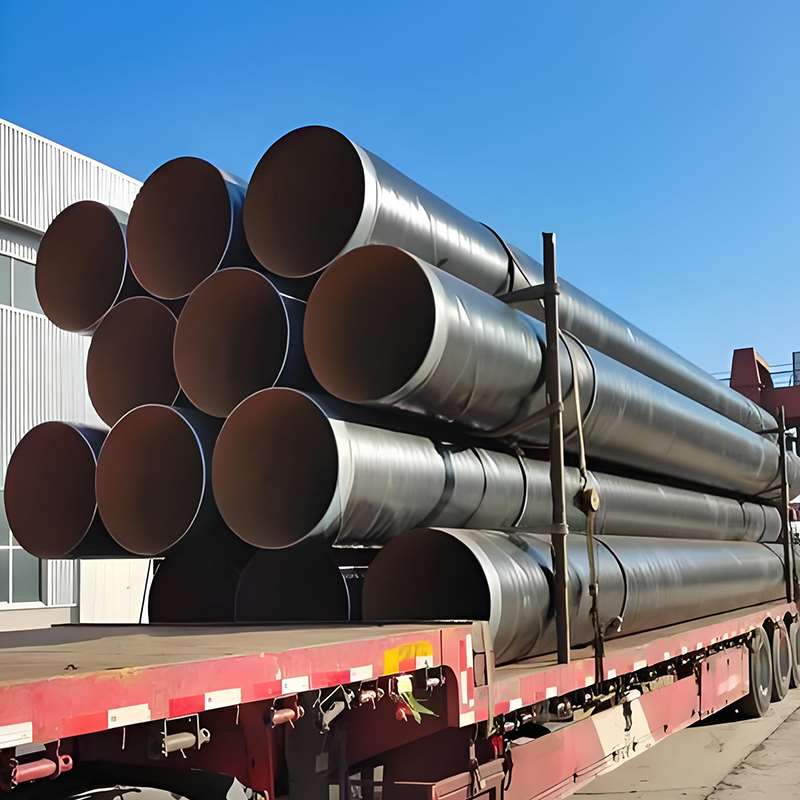

1. Common Issues Encountered During the Transportation of Large-Diameter Steel Pipes

• Deformation of pipe ends due to impact
• Scratches or peeling of the anti-corrosion coating
• Deformation of steel pipes caused by uneven lifting forces
• Rolling displacement during long-distance transportation
• Moisture absorption or salt spray corrosion during maritime transport

For steel pipes that have undergone 3PE or FBE anti-corrosion treatment, once the anti-corrosion coating is damaged, localized corrosion spots are likely to form during subsequent underground operation, thereby affecting the overall service life of the pipeline.

2. Protecting the anti-corrosion coating is a critical step during transportation and construction.

For example:

• Steel wire ropes coming into direct contact with steel pipes during hoisting
• Coating abrasion caused by dragging on the ground
• Scratches to the anti-corrosion coating from backfill stones
• Failure to promptly apply anti-corrosion treatment to weld joints

Although these issues may not be apparent during the construction phase, they can easily lead to corrosion hazards after long-term operation.

Therefore, the following measures are typically implemented at construction sites:

• Flexible lifting slings
• Pipe end protection measures
• Anti-corrosion joint repair
• Electrical spark testing
• Anti-corrosion inspection prior to backfilling

to ensure the integrity of the pipeline’s overall anti-corrosion system.

3. Installation efficiency directly impacts the project timeline

In long-distance water, oil, and energy transmission projects, the installation efficiency of large-diameter steel pipes directly affects the overall project schedule.

If steel pipes exhibit:

• Significant roundness deviations
• Unstable weld quality
• Poor dimensional accuracy
• Insufficient adhesion of the anti-corrosion coating

the following issues are likely to arise on-site:

• Difficulty in aligning pipe ends
• Welding rework
• Increased joint repair work
• Delays in installation progress

Therefore, large-scale projects typically place greater emphasis on the following aspects of steel pipes:

• Dimensional stability
• Weldability
• Anti-corrosion quality
• Transportation protection capabilities

to reduce on-site construction risks and minimize long-term maintenance costs.

VI. Procurement Standards for Engineering Projects

In large-scale water and oil transmission projects and infrastructure projects, when procuring large-diameter corrosion-resistant spiral-welded steel pipes, project owners typically focus not only on product price but also on whether the pipes can meet construction requirements, ensure long-term operational stability, and satisfy project acceptance standards.

In engineering procurement, the dimensional accuracy, weld quality, and anti-corrosion performance of steel pipes directly impact on-site installation efficiency and future maintenance costs. For example, if the roundness deviation of the steel pipes is significant, it can lead to difficulties in aligning the pipes during on-site installation; if the adhesion of the anti-corrosion coating is insufficient, the coating may be damaged during transportation or backfilling, thereby increasing the risk of corrosion in the future.

Therefore, during the procurement process, many projects place particular emphasis on verifying the following aspects:

• Steel pipe standards and material grades
• Non-destructive testing reports for welds
• Type and thickness of the anti-corrosion coating
• Electrical spark testing results
• Dimensional tolerances and roundness control
• Third-party inspection documentation
• Packaging and transportation protection plans
• Delivery lead times and batch delivery capabilities

For long-distance buried pipelines and large-scale energy projects, stable product quality and a reliable anti-corrosion system are often more important than simply low prices. This is because if rework, anti-corrosion damage, or dimensional deviations occur during construction, the overall project costs may far exceed the price of the materials themselves.

VII. Testing Standards

VIII. Frequently Asked Questions (FAQ) on Large Diameter Coated Spiral Steel Pipe Procurement

1. How to determine whether steel pipes meet quality requirements?

In engineering procurement, product quality should not be judged solely by appearance or price. The key factor is whether the product complies with project specifications and applicable standards.

Key evaluation points include:

• Applicable standards (e.g., API 5L, ASTM, EN, etc.)
• Mill Test Certificate (MTC)
• Non-Destructive Testing (NDT) reports for welds (UT/RT)
• Hydrostatic test reports
• Coating inspection and testing results

Reputable suppliers typically provide a complete quality documentation package to support project acceptance, inspection, and full traceability.

2. What is the difference between spiral steel pipes and seamless or longitudinal welded steel pipes?

Spiral steel pipes (SSAW) offer significant advantages in large-diameter production, including lower manufacturing costs, suitability for long-distance transmission projects, and flexible customization of diameter and wall thickness.

Seamless steel pipes are generally used for small-diameter, high-pressure applications and are relatively more expensive. Longitudinal submerged arc welded pipes (LSAW) are commonly used in high-pressure long-distance pipelines, but are less economical than spiral steel pipes in large-diameter and cost-sensitive projects.

Therefore, for large-scale water transmission, oil transportation, and infrastructure projects, spiral steel pipes are often the preferred choice.

3. What types of anti-corrosion coatings are available, and how should they be selected?

Common anti-corrosion coating systems include 3PE (Three-Layer Polyethylene), FBE (Fusion Bonded Epoxy), and Coal Tar Epoxy.

Selection depends primarily on the service environment:

• Buried pipelines: 3PE coating is most commonly used
• High-temperature or chemical environments: FBE coating is preferred
• General anti-corrosion applications: Coal Tar Epoxy coating is often used

For long-distance oil, natural gas, and municipal engineering projects, 3PE anti-Corrosion spiral steel pipes are typically the preferred choice due to their excellent durability and extended service life.

4. Do dimensional tolerances of steel pipes affect installation?

Yes, they do.

Excessive deviations in outer diameter, ovality, or straightness can lead to difficulties in field alignment, poor welding fit-up, or rework, all of which directly impact construction efficiency.

Therefore, engineering projects typically enforce strict dimensional tolerance control and conduct individual inspection of each pipe before shipment to ensure smooth installation on site.

5. What is the typical delivery lead time?

The delivery time depends on order quantity, specifications, and coating requirements.

For standard large diameter spiral steel pipes, production typically takes approximately 20–45 days. If special coating systems such as 3PE are required, or if the order volume is large, the production cycle may be extended accordingly.

For engineering projects, it is recommended to confirm the production schedule in advance to avoid any impact on construction timelines.

6. How is the coating protected during transportation?

Reputable suppliers usually adopt specialized transportation and handling solutions, including pipe-end protective caps, wooden supports, anti-slip fixation systems, and soft lifting slings.

During loading and unloading, steel wire ropes are strictly prohibited from direct contact with the coated surface to prevent scratching, dragging, or impact damage.

For export shipments, waterproof packaging and reinforced bundling are also applied to minimize the risk of damage during sea freight or long-distance transportation.

Large Diameter FBE Coated SSAW Pipe is increasingly being used in modern municipal water supply systems. With the accelerating pace of urbanization, water infrastructure projects are placing higher demands on pipeline performance, including high-capacity flow transmission, long-term operational stability, and lower maintenance costs.

Large-diameter water transmission pipelines must not only provide high pressure-bearing capacity, but also adapt to complex soil conditions and long-term buried service environments. As a result, stricter requirements are imposed on both the structural strength of steel pipes and their external anti-corrosion performance, ensuring the safety and reliability of water supply systems throughout long-term operation.

II. Structural Advantages of SSAW Steel Pipe

SSAW (Spiral Submerged Arc Welded) steel pipe is manufactured by continuously forming steel strip into a spiral shape and welding it through submerged arc welding. This process ensures stable structure and makes it highly suitable for large-diameter transmission projects. Its key advantages include:

• Capability for ultra-large diameter production: Suitable for high-capacity water transmission, oil and gas transportation, and municipal trunk pipeline networks.
• High material utilization rate: Continuous forming of steel strip reduces material waste, making it more efficient for long-distance and large-scale engineering applications.
• More uniform stress distribution: The spiral weld seam is distributed at an angle along the pipe body, effectively dispersing internal pressure and external loads, thereby improving overall structural stability.
• More competitive overall cost: Compared with longitudinal welded pipes (LSAW), SSAW pipes offer better economic efficiency and higher construction productivity in large-diameter applications.

III. Requirements for FBE Coating Uniformity

FBE (Fusion Bonded Epoxy) coating serves as a critical protective barrier in steel pipeline anti-corrosion systems. Its uniformity and density directly determine the corrosion resistance and service life of the pipeline.

In actual manufacturing and construction processes, the following key aspects must be strictly controlled:

• Consistent coating thickness: The overall coating must maintain uniform thickness to avoid local over-thickness or under-thickness, which could compromise protective performance.
• Strict surface preparation compliance: The steel pipe surface must undergo high-standard abrasive blasting (shot blasting/sand blasting) to enhance adhesion strength and bonding performance.
• Uniform and complete fusion application: Under controlled high-temperature conditions, epoxy powder must be fully melted and evenly applied to completely cover the steel surface.
• Strict defect control: Defects such as pinholes, bubbles, voids, and local coating holidays must be avoided to ensure coating integrity and quality performance.

IV. Applications in Urban Water Supply Systems

This series of large-diameter FBE Coated Spiral Steel Pipe is specifically designed to meet the high-standard water transmission requirements of modern cities and is widely used in the following key applications:

• Urban water supply trunk networks: Serving as the main high-pressure, high-capacity transmission arteries of municipal water distribution systems.
• Long-distance inter-regional water diversion projects: Adapting to complex underground soil conditions to ensure safe and reliable long-distance water transmission along the entire route.
• Water treatment plant and distribution systems: Used for efficient connection between water treatment plants, pumping stations, and urban pipeline networks.
• Industrial park water supply systems: Meeting the high-demand requirements for continuous and stable water supply in modern industrial zones.

Core assurance:
Thanks to the excellent anti-microbial resistance and zero-toxic release characteristics of FBE (Fusion Bonded Epoxy) coating, the pipeline not only delivers superior sealing performance and long-term corrosion resistance, but also effectively prevents secondary contamination. This ensures 100% protection of drinking water quality safety and long-term system operational stability.

V. Large-Scale Project Construction and Field Adaptability

1. Lifting and Handling of Large-Diameter, Heavy-Weight Pipes

Due to their large diameter and substantial individual pipe weight, on-site installation requires professional lifting equipment and specialized lifting slings. Steel wire ropes should not come into direct contact with the external coating, as they may damage the anti-corrosion layer. All loading, unloading, and pipe-laying operations should be carried out in strict accordance with established construction standards.

2. High-Precision Fit-Up and Welding

The pipe’s wall thickness and roundness are manufactured to precise tolerances. During field installation, professional alignment clamps (internal or external line-up clamps) should be used to ensure uniform weld joint gaps. This helps meet the inspection requirements for high-quality double-sided submerged arc welding or field manual welding procedures.

3. Strict Protection of the Anti-Corrosion Coating

Although FBE coating provides excellent corrosion protection, it is relatively sensitive to mechanical damage. Protective measures should be implemented throughout handling, stringing, installation, and backfilling operations. The trench bottom should be properly leveled and free of sharp rocks or hard debris to maintain the integrity of the external coating system.

4. Efficient Long-Distance Pipeline Installation

With standard pipe lengths such as 12 meters, large-diameter FBE-coated SSAW pipes are particularly suitable for continuous linear installation in large-scale pipeline projects. Their design supports efficient sectional construction, helping reduce project timelines while improving overall installation quality and construction productivity.

VI. Quality Control Standards

VII. Selection FAQ: Large Diameter FBE Coated SSAW Pipe

Q1: What applications are large-diameter FBE coated SSAW pipes primarily used for?

These pipes are mainly used in municipal water transmission trunk lines, inter-regional water transfer projects, water treatment plant distribution systems, and industrial park water supply networks.

Thanks to their large diameter, high structural strength, and excellent corrosion resistance, they are also widely used in long-distance buried water transmission projects, particularly in infrastructure applications where long-term reliability and service life are critical.

Q2: How do I select the appropriate pipe diameter and wall thickness for my project?

Pipe selection is generally based on three key factors:

• Design flow rate
• Operating pressure
• Transmission distance

As a general rule:

• Higher flow rates → Larger pipe diameters
• Higher operating pressures → Greater wall thickness
• Longer transmission distances → Higher safety requirements

To ensure optimal performance and cost efficiency, the final pipe specification should be determined by the project design engineer based on hydraulic calculations and engineering requirements. Oversized or undersized pipes can lead to unnecessary costs or operational inefficiencies.

Q3: Is the FBE coating important when selecting a pipeline? Why?

Absolutely. The quality of the FBE (Fusion Bonded Epoxy) coating has a direct impact on the pipeline’s corrosion resistance and service life.

A high-quality FBE coating effectively isolates the steel surface from soil, moisture, oxygen, and chemical contaminants, significantly reducing maintenance requirements and lifecycle costs.

For projects located in high-humidity regions, saline-alkaline soils, or areas with elevated groundwater levels, selecting a pipeline with a high-performance FBE coating system is strongly recommended.

Q4: What advantages does the SSAW structure offer compared to longitudinal welded pipes?

SSAW (Spiral Submerged Arc Welded) pipes provide several key advantages:

• Capable of producing larger diameters for high-capacity water transmission
• More uniform stress distribution, enhancing overall structural stability
• Higher material utilization and improved cost efficiency
• Well suited for long-distance continuous pipeline installation

For these reasons, SSAW pipes are extensively used in large-scale water supply and transmission projects worldwide.

Q5: How can I determine whether the FBE coating quality meets the required standards?

The quality of an FBE coating is typically evaluated based on the following criteria:

• Uniform coating thickness
• Absence of pinholes, bubbles, holidays, or uncoated areas
• Compliance with adhesion strength requirements
• Successful holiday detection (spark testing)

A qualified FBE coating should exhibit a continuous, dense, and defect-free surface, which is essential for ensuring long-term corrosion protection performance.

Q6: How can potential construction and operational issues be minimized during the selection stage?

To reduce installation challenges and long-term operational risks, the following factors should be carefully considered during project planning:

• Clearly define design pressure and required safety factors
• Select a corrosion protection system suitable for the project environment
• Consider transportation and lifting requirements, especially for large-diameter pipes
• Ensure compatibility between welding procedures and field joint coating methods
• Coordinate installation methods with the construction contractor in advance

Proper pipeline selection can significantly improve construction efficiency while reducing future maintenance requirements, repair costs, and leakage risks.

I. Characteristics of Underground Corrosion Environments

Underground pipelines are continuously exposed to complex and harsh environmental conditions. Moisture, oxygen, electrolytes, and microorganisms in the soil all contribute to ongoing corrosion of steel pipes.

Common corrosion factors include:

• High soil moisture content, which accelerates oxidation reactions
• Differences in soil resistivity between layers, leading to electrochemical corrosion
• Stray current interference (e.g., from rail transit systems and power infrastructure)
• Microbiologically influenced corrosion (MIC)
• Acidic or highly saline-alkaline soil conditions

The combined effect of these factors makes it difficult for ordinary steel pipes to maintain long-term stable performance in underground environments.

II. Protective Function of FBE in Buried Applications

FBE (Fusion Bonded Epoxy) coating is primarily used for the corrosion protection of buried steel pipelines. Its core function is to ensure long-term stable operation of steel pipes in underground environments while significantly reducing maintenance and replacement costs caused by corrosion.

In practical applications, FBE coating can:

• Effectively isolate moisture and oxygen in the soil, reducing the likelihood of corrosion
• Form a strong and durable protective layer that is not easily damaged during construction or backfilling
• Bond tightly with the steel substrate, ensuring long-term adhesion without peeling or detachment
• Perform reliably under cathodic protection systems with excellent resistance to coating disbondment
• Adapt to complex underground environments such as humid, saline, and alkaline soils, significantly extending pipeline service life

Therefore, FBE coating is not merely a “protective film,” but a critical anti-corrosion solution that ensures the long-term safe operation of buried steel pipelines.

III. Application Scenarios of Underground FBE Coated Steel Pipes in Water Systems

In water system engineering, pipelines are responsible not only for water transmission but also directly affect water supply safety, operational stability, and lifecycle maintenance costs. Due to its excellent corrosion resistance and long-term stability, FBE-coated steel pipe is widely used across various water-related applications.

1. Municipal Water Supply Systems

In urban potable water distribution networks, pipelines are typically buried underground and exposed to moist soil for extended periods.

FBE-coated steel pipes can:

• Prevent corrosion caused by groundwater and surrounding soil
• Reduce leakage risk and improve water supply reliability
• Minimize road excavation and repair frequency, thereby lowering municipal maintenance costs

2. Sewage and Drainage Systems

Wastewater contains acidic and alkaline substances, organic matter, and other corrosive media, making it highly aggressive to pipelines.

The benefits of FBE coating include:

• Enhanced resistance to chemical corrosion
• Reduced risk of perforation caused by internal and external corrosion
• Extended service life of sewage and drainage networks

3. Industrial Circulating Water Systems

In industrial cooling and circulating water systems, water quality is often complex and may contain chemical additives or impurities.

FBE-coated steel pipes help to:

• Reduce scaling and corrosion issues
• Maintain long-term stable pipeline operation
• Decrease shutdowns and maintenance frequency

4. Long-Distance Water Transmission Projects

Such as inter-regional water diversion projects or large-scale water supply pipelines, which require extremely high service life and reliability.

Key advantages of FBE coating include:

• Long-term stable protection suitable for large-scale buried installation
• Reduced maintenance complexity during operation
• Improved overall engineering reliability

5. Groundwater and Water Intake Systems

In groundwater extraction and transmission systems, water may contain minerals or mildly corrosive components.

FBE-coated steel pipes can:

• Mitigate the corrosive effects of mineral content
• Extend pipeline service life
• Maintain stable and reliable water transmission performance

IV. Soil Corrosion Protection Mechanism

In buried environments, steel pipes are highly susceptible to corrosion caused by the combined effects of moisture, oxygen, and chemical components in the soil. FBE coating provides long-term and stable protection through multiple corrosion prevention mechanisms.

1. Physical Barrier Protection

FBE coating forms a continuous and dense protective layer on the surface of the steel pipe, effectively blocking direct contact between moisture, oxygen, and corrosive media and the steel substrate. This significantly reduces the initiation of corrosion at the source.

2. Strong Chemical Stability

Epoxy materials possess excellent chemical stability and are not easily degraded by acidic, alkaline substances, or salts present in the soil. This allows the coating to maintain stable performance over long-term exposure to complex underground environments.

3. Synergy with Cathodic Protection Systems

When used in combination with cathodic protection systems, FBE coating helps reduce the electrochemical activity of the steel surface and minimizes the concentration of corrosion current, thereby improving the overall reliability of the anti-corrosion system.

V. Long-Term Performance Analysis

Under proper installation and normal buried service conditions, FBE-coated steel pipelines typically achieve a service life of 20–50 years, and in some favorable environments, even longer.

The long-term performance is primarily influenced by the following key factors:

1. Coating Quality and Uniformity

The uniformity of coating thickness and the presence of defects such as pinholes or weak spots directly affect the protective performance. High-quality coating ensures continuous and stable barrier protection.

2. Surface Preparation Quality

The degree of surface cleaning and rust removal prior to coating application (e.g., Sa2.5 surface preparation standard) determines the bonding strength between the coating and the steel substrate. It is a critical foundation for long-term adhesion performance.

3. Soil Environmental Conditions

Moisture content, salinity, and chemical aggressiveness of the surrounding soil significantly influence long-term corrosion resistance. More complex soil conditions require higher coating performance.

4. Construction and Handling Protection

During transportation, lifting, and backfilling, mechanical damage to the coating may create localized corrosion points, which can negatively impact overall service life.

5. Synergy with Cathodic Protection Systems

In long-distance buried pipeline networks, FBE coating is typically used in combination with cathodic protection systems, further reducing corrosion risk and extending overall service life.

VI. FBE vs 3PE Comparison Table

VII. FAQ – Underground FBE Coated Steel Pipe

Q1: What is an underground FBE coated steel pipe?

An underground FBE coated steel pipe refers to a steel pipe that is coated with a Fusion Bonded Epoxy (FBE) anti-corrosion layer on the external surface and is designed for buried pipeline systems.

Its main functions are to:

• Prevent corrosion caused by soil, moisture, and oxygen
• Extend pipeline service life
• Reduce long-term maintenance and replacement costs

It is widely used in municipal, oil & gas, petrochemical, and water conservancy underground pipeline projects.

Q2: In which underground environments is FBE coated steel pipe suitable?

FBE coated steel pipes are suitable for most conventional buried environments, including:

• Normal soil conditions
• Moist underground environments
• Urban pipeline networks
• Mild saline-alkali soil areas

However, in extremely corrosive environments (such as severe seawater exposure or high-salinity, high-humidity industrial zones), it is generally recommended to combine the system with cathodic protection or use a 3PE anti-corrosion structure.

Q3: What is the service life of FBE coated steel pipes?

Under proper installation and normal operating conditions, the service life of FBE coated steel pipes is typically 20–50 years.

Key factors affecting service life include:

• Coating uniformity and integrity
• Damage to the coating during transportation and installation
• Soil corrosivity
• Whether cathodic protection is applied

Q4: Will the FBE coating peel off or fail underground?

Under normal conditions, high-quality FBE coating is not easy to peel off because it is bonded to the steel surface through high-temperature fusion, rather than simple adhesion.

However, performance may be affected in the following situations:

• Inadequate surface preparation before coating
• Mechanical damage during handling or installation
• Impact from hard materials during backfilling

Therefore, proper construction practices are essential.

Q5: What is the difference between FBE coated steel pipes and ordinary anti-corrosion Spiral steel pipes?

The main differences lie in corrosion resistance and service life:

• Ordinary coated steel pipes: limited protection performance, suitable for short-term or mild environments
• FBE coated steel pipes: dense structure with strong adhesion, suitable for long-term buried applications

In long-term underground pipeline systems, FBE coated pipes offer better stability and cost efficiency.

Q6: Is cathodic protection still required when using FBE coated steel pipes?

In most long-distance buried pipeline systems, FBE coating is typically used together with a cathodic protection system.

The reason is:

• The coating acts as a barrier, isolating corrosive media
• Cathodic protection suppresses electrochemical corrosion

The combination of both significantly enhances the overall corrosion protection level and is widely used in long-distance or high-reliability engineering projects.

I. Technical Principle of FBE (Fusion Bonded Epoxy)

FBE (Fusion Bonded Epoxy) anti-corrosion coating is a protective technology in which epoxy powder is permanently bonded to the surface of steel pipe through high-temperature fusion.

The core principle is as follows: after the steel pipe is heated, epoxy powder is electrostatically sprayed onto the metal surface. Under heat, the powder melts rapidly, flows evenly, and undergoes a chemical cross-linking reaction, ultimately forming a dense and highly durable anti-corrosion coating.

The FBE coating effectively isolates the steel surface from:

• Moisture
• Oxygen
• Salts
• Chemical corrosive media

This prevents electrochemical corrosion of the steel pipe.

Key characteristics of FBE coating include:

• Excellent adhesion to steel substrate
• Strong resistance to chemical corrosion
• Good cathodic disbondment resistance
• Uniform coating thickness
• Long service life

Because of these advantages, FBE is widely used for external corrosion protection of oil & gas pipelines and industrial fluid transmission systems.

II. Electrostatic Spraying Process of FBE Spiral Steel Pipe

The FBE (Fusion Bonded Epoxy) electrostatic spraying process is one of the most critical anti-corrosion technologies used in long-distance pipelines, municipal pipeline networks, and high-pressure transmission systems.

Due to the continuous spiral weld seam of spiral steel pipes, the requirements for heat control and coating uniformity are higher compared with seamless pipes.

Core Manufacturing Process:

1. Surface Preparation (Shot Blasting)

After entering the production line, the steel pipe is preheated to remove moisture, followed by surface cleaning using a high-intensity shot blasting machine.

The surface cleanliness must reach Sa2.5 grade, and the anchor profile (surface roughness) should be controlled at 40–100 μm. This step is critical to ensure strong mechanical adhesion of the FBE coating.

After blasting, the surface dust is removed using dry compressed air.

2. Medium-Frequency Induction Heating

The cleaned spiral steel pipe then enters a medium-frequency induction heating furnace for rapid heating.

The curing temperature for FBE powder typically requires the pipe surface temperature to reach 180°C – 230°C, adjusted precisely according to the curing curve provided by the powder manufacturer.

Since spiral weld areas may have slight variations in thickness or geometry, uniform heating across the entire pipe surface must be strictly controlled.

3. Electrostatic Spraying (Core Film Formation)

The heated steel pipe passes through the coating chamber at a controlled rotation and conveying speed.

Electrostatic spray guns charge the epoxy powder negatively, while the grounded steel pipe acts as the positive electrode. Under the electrostatic field, the powder is evenly attracted to the outer surface of the pipe.

Because the pipe surface temperature is around 200°C, the powder melts instantly upon contact, flows smoothly, and begins to gel and cross-link.

4. Curing and Cooling

After spraying, the coating is allowed to flow out and cure in air for a short period (usually several tens of seconds), ensuring full cross-linking of the epoxy resin.

The pipe then enters a water-cooling section, where its temperature is reduced to below 100°C, allowing the coating to fully solidify and lock in its physical and chemical properties.

5. Online Inspection and End Treatment

After cooling, the coating is subjected to online holiday (spark) testing to ensure coating integrity. The typical test voltage for single-layer FBE is 2,500V, ensuring no pinholes, bubbles, or coating defects.

Finally, both pipe ends are ground and left uncoated (typically 50–150 mm bare steel) to facilitate field welding and pipeline joint connection.

Process Flow Overview

The coating process includes the full closed-loop production flow:
Bare Pipe → Heating → Shot Blasting → Reheating → Electrostatic Epoxy Powder Spraying → Curing → Cooling → Inspection → End Beveling & Bare End Treatment.

III. FBE vs 3PE Coating Comparison Table

IV. Industrial Application Scope of FBE Spiral Steel Pipe

1. Soil Conditions: Highly Corrosive and High Groundwater Environments

Applicable conditions: saline-alkali land, swamp areas, coastal tidal flats, or underground soil near chemical plants.

Environmental characteristics:
Soil has high acidity/alkalinity, long-term moisture saturation, and the presence of stray currents underground, leading to severe electrochemical corrosion.

Why FBE is selected:
FBE offers excellent cathodic disbondment resistance and outstanding electrical insulation performance. It acts like a tightly sealed “protective armor,” effectively blocking moisture, acids, and alkalis from penetrating the steel surface.

2. Fluid Medium: Large-Diameter Water Transmission and Wastewater Systems

Applicable conditions: municipal water supply trunk lines, industrial circulating water pipelines, and sewage discharge networks.

Environmental characteristics:
The inner pipe wall is exposed to long-term high-velocity water flow erosion, and wastewater may contain corrosive gases such as hydrogen sulfide (H?S).

Why FBE is selected:
A non-toxic FBE lining applied to the internal surface provides an ultra-smooth, almost mirror-like finish. This not only prevents scaling and fouling but also reduces hydraulic friction and energy consumption. Meanwhile, the external coating ensures reliable protection against complex underground environments.

3. Temperature Conditions: 80°C – 115°C Heat Transfer Applications

Applicable conditions: refinery process pipelines, chemical plant piping systems, and circulating hot water lines in thermal power plants.

Environmental characteristics:
The transported media (oil or water) operates at elevated temperatures.

Why FBE is selected:
Conventional polymer coatings such as polyethylene (PE) begin to soften and fail above approximately 60°C. In contrast, FBE is a thermosetting material with inherent high-temperature resistance. Standard formulations can withstand up to 80°C, while modified grades can perform reliably at temperatures above 115°C.

4. Geographic Conditions: Coastal and Marine Engineering with High Salt Exposure

Applicable conditions: coastal steel pipe piles at ports, seawater intake pipelines for offshore platforms, and marine infrastructure systems.

Environmental characteristics:
The pipeline operates in a harsh splash zone with alternating wet and dry cycles, exposed to high concentrations of chloride ions in both air and seawater.

Why FBE is selected:
Epoxy powder coatings naturally resist chloride ion penetration. When combined with dual-layer FBE (DFBE) technology, the system provides enhanced protection against salt-laden marine air and also withstands moderate mechanical abrasion during piling and installation processes.

V. Advantages and disadvantages of FBE spiral welded steel pipe technology

VI. FAQ – FBE Spiral Steel Pipe

Q1: What engineering applications are FBE Coated spiral steel pipes used for?

FBE spiral steel pipes are mainly used in buried pipeline projects with high anti-corrosion requirements, such as oil and gas transmission, municipal water supply and drainage systems, and industrial pipeline networks. They are well-suited for long-distance transportation and complex soil conditions, effectively extending pipeline service life and reducing maintenance costs.

Q2: How effective is the corrosion protection performance of FBE coating?

FBE coating provides excellent anti-corrosion performance. It forms a dense protective layer through fusion-bonded epoxy powder, effectively isolating moisture, oxygen, and corrosive media. It is particularly suitable for underground applications and performs reliably in normal soil and moderately corrosive environments.

Q3: What is the difference between FBE spiral steel pipe and ordinary spiral steel pipe?

The main difference is the presence of a corrosion protection coating. Ordinary spiral steel pipes consist only of bare steel and are prone to corrosion. In contrast, FBE spiral steel pipes are coated with an epoxy anti-corrosion layer, significantly improving corrosion resistance and service life, making them more suitable for long-term buried applications.

Q4: Is the FBE coating prone to peeling or detachment?

Under normal construction and transportation conditions, FBE coating has strong adhesion and is not easily detached. It forms a chemical bond with the steel surface through high-temperature fusion bonding. However, severe mechanical impact during handling or installation may still cause localized damage, so proper protection during construction is required.

Q5: How should FBE and 3PE anti-corrosion pipes be selected?

For highly corrosive environments or complex construction conditions (such as rocky soil or rough backfilling), 3PE is generally recommended due to its superior mechanical protection. For standard soil conditions or projects requiring strong chemical corrosion resistance, FBE is sufficient and offers a more cost-effective solution.

Q6: What is the service life of FBE spiral steel pipes?

Under proper design and standardized installation, the service life of FBE spiral steel pipes is typically over 20 years. In favorable environmental conditions, the lifespan can be even longer. The actual service life depends on soil conditions, construction quality, and operating environment.

I. Buried Pipeline Corrosion Environment and Major Risk Factors

Buried pipelines are not located in a truly “isolated and safe” environment; instead, they are continuously exposed to multiple corrosion mechanisms:

(1) Soil Electrochemical Corrosion

Different soils vary in electrical resistivity, pH value, and moisture content, creating micro-current environments that continuously drive electrochemical corrosion of steel.

(2) Groundwater and Moisture Effects

Long-term exposure to humid conditions or groundwater immersion forms an electrolyte environment, accelerating metal oxidation reactions.

(3) Chemical Ion Corrosion

Chloride ions, sulfates, and industrial pollutants significantly increase corrosion rates, particularly in coastal and industrial regions where exposure is more severe.

(4) Stray Current Corrosion

Stray currents generated by rail transit systems, trams, and industrial electrical equipment can interfere through the soil and induce localized, high-intensity corrosion on pipelines.

(5) Microbiologically Influenced Corrosion (MIC)

In anaerobic environments, sulfate-reducing bacteria (SRB) and other microorganisms produce acidic substances that directly damage the steel structure and accelerate degradation.

II. 3PE Anti-Corrosion Structure and Working Principle

The Underground 3PE Anti-corrosion Spiral Steel Pipe adopts a three-layer composite protective system, combining chemical resistance and mechanical protection:

① FBE (Fusion Bonded Epoxy) Primer Layer

This inner layer is directly applied onto the steel surface, forming a high-adhesion corrosion-resistant barrier with excellent chemical resistance against corrosive media.

② Adhesive Layer (Middle Layer)

This layer acts as a bonding bridge, ensuring strong adhesion between the epoxy layer and the outer polyethylene layer, preventing interlayer separation or delamination.

③ PE (Polyethylene) Outer Layer

The outer protective layer provides mechanical strength, resisting soil pressure, impact damage, and moisture penetration, ensuring long-term physical protection of the pipeline system.

III. Service Life: Why Can It Reach 30–50 Years?

Under proper engineering design, standardized manufacturing, and correct installation conditions, the Underground 3PE Anti-corrosion Steel Pipe can typically achieve a stable service life of 30–50 years. This long service life is primarily the result of multiple protective mechanisms working in synergy:

1. Excellent Resistance to Water and Oxygen Permeation

The outer polyethylene (PE) layer has extremely low water absorption, effectively blocking moisture and oxygen from reaching the steel surface, thereby slowing down corrosion reactions at the source.

2. High Resistance to Cathodic Disbondment

The fusion bonded epoxy (FBE) layer forms a strong bond with the steel substrate. Even if local coating damage occurs, it can effectively prevent corrosion from spreading to surrounding areas.

3. Strong Mechanical Impact Resistance

The polyethylene outer layer provides excellent toughness, allowing it to withstand backfilling pressure, mechanical impact, and abrasion during construction without significant coating damage.

4. Good Low-Temperature Performance

In cold regions or low-temperature buried environments, the coating system maintains stable physical properties and is not prone to embrittlement or cracking.

IV. Municipal and Underground Engineering Applications and Selection Guidelines

The Underground 3PE Anti-corrosion Steel Pipe is widely used in municipal and underground engineering projects. However, different application scenarios require different levels of corrosion protection, steel pipe standards, wall thickness design, and auxiliary protection systems. Proper selection directly affects service life, operational safety, and maintenance costs.

1. Urban Water Supply and Transmission Systems

Applications:

• Urban primary water supply networks
• Drinking water distribution pipelines
• Long-distance water transmission projects
• Secondary water supply trunk lines

Selection Guidelines:

• Coating grade: Normal-duty or Heavy-duty 3PE
• Pipe types: LSAW / SSAW / Seamless steel pipes (depending on pressure requirements)
• Design focus: Coordination of internal and external corrosion protection to avoid water contamination
• Recommended system: Cathodic protection system (for medium to large-scale projects)

2. Natural Gas and City Gas Distribution Networks

Applications:

• Urban gas transmission trunk lines
• Regional gas distribution pipelines
• Industrial park gas supply systems

Selection Guidelines:

• Coating grade: Heavy-duty or Extra-heavy-duty 3PE
• Steel standard: API 5L PSL2 preferred
• Wall thickness design: Based on high safety factor requirements
• Mandatory systems: Cathodic protection + insulating joints

3. Crude Oil and Refined Oil Long-Distance Pipelines

Applications:

• Crude oil transmission pipelines
• Refined oil pipelines (gasoline, diesel, etc.)
• Inter-regional energy transportation networks

Selection Guidelines:

• Coating grade: Extra-heavy-duty 3PE
• Steel grades: API 5L X52 / X60 / X65 or higher
• Design focus: Impact resistance and soil stress resistance
• Recommended system: Dual protection of 3PE coating + cathodic protection

4. Municipal Drainage and Wastewater Networks

Applications:

• Stormwater drainage systems
• Sewage transmission pipelines
• Urban wastewater trunk lines

Selection Guidelines:

• Coating grade: Normal-duty or Heavy-duty 3PE
• Key requirement: Strong chemical resistance (sulfides, acidic environments)
• Optional internal coating: Cement mortar lining or epoxy internal coating
• Construction focus: Prevent mechanical damage to the coating during installation

5. Underground Utility Tunnel (Comprehensive Pipe Gallery) Projects

Applications:

• Water supply and drainage systems in utility tunnels
• Energy and communication support pipelines
• Integrated urban underground pipeline networks

Selection Guidelines:

• Coating grade: Heavy-duty 3PE
• Design focus: Resistance to external forces in confined spaces
• Recommended configuration: High-toughness PE outer layer
• Construction requirement: Strict protection of coating integrity during installation

6. Industrial Park Underground Pipeline Networks

Applications:

• Industrial circulating water systems
• Chemical media pipelines (non-severely corrosive media)
• Plant energy transmission systems

Selection Guidelines:

• Coating grade: Selected based on medium corrosivity (Normal/Heavy-duty)
• Optional internal coating: Epoxy lining for additional protection
• Steel grade: Determined according to pressure rating
• Recommendation: Periodic inspection and cathodic protection system implementation

V. 3PE Anti-corrosion Steel Pipe International Standard

VI. FAQ

1. What factors should be considered when selecting 3PE anti-corrosion steel pipes?

When selecting 3PE coated steel pipes, price should not be the only consideration. Instead, the following engineering conditions must be evaluated comprehensively:

• Type of conveyed medium (oil, gas, water, wastewater, etc.)
• Soil corrosion level (alkaline soil, high-moisture areas, industrially polluted zones)
• Operating pressure and design temperature
• Required service life (30-year or 50-year design life)
• Whether a cathodic protection (CP) system is required

Key recommendation:
The more complex the environment, the higher the required coating grade (Normal → Standard/Medium → Reinforced/Extra-heavy-duty).

2. What is the difference between Normal-duty, Medium-duty, and Extra-heavy-duty 3PE coatings?

The main difference lies in coating thickness and overall protection performance:

• Normal-duty: Suitable for low-corrosion environments
• Medium-duty (Standard): Suitable for general municipal and water pipeline systems
• Extra-heavy-duty (Reinforced): Suitable for long-distance oil & gas pipelines and highly corrosive environments

Selection guidance:

• Urban water supply → Normal-duty / Medium-duty
• Gas and industrial pipeline networks → Medium-duty
• Long-distance oil and gas transmission → Extra-heavy-duty

3. Can 3PE coated steel pipes be used for high-temperature pipelines?

3PE coated steel pipes are primarily designed for ambient or low-temperature buried pipeline applications and are not suitable for long-term high-temperature service.

• The PE outer layer loses performance at elevated temperatures
• Prolonged high temperatures can affect coating stability
• Continuous high-temperature transport applications are generally not recommended

4. Why do 3PE Coated Spiral Steel Pipes still require cathodic protection?

Although the 3PE coating system provides excellent corrosion resistance, long-term field conditions may still lead to:

• Construction or handling scratches
• Weak points at field joint coating areas
• Long-term soil stress effects

The role of cathodic protection (CP) is to:

• Prevent corrosion propagation at coating damage points
• Provide a secondary line of defense
• Extend overall pipeline service life

5. How should 3PE coating grades be selected based on soil conditions?

Different soil environments determine the required coating grade:

• Low-corrosion soil (dry, low salinity): Normal-duty
• Medium-corrosion soil (urban areas, typical groundwater conditions): Medium-duty
• High-corrosion soil (alkaline soil, industrial zones, coastal areas): Extra-heavy-duty

6. What is the most common mistake in selecting 3PE coated steel pipes?

The most common mistake is selecting pipes based solely on price while ignoring engineering conditions.

Typical issues include:

• Using Normal-duty coating instead of Medium-duty, leading to early corrosion
• Ignoring soil corrosion risk assessment
• Failing to consider cathodic protection systems
• Improper field joint coating treatment

Consequences:

• Premature corrosion failure
• Significant increase in maintenance costs
• Reduced overall pipeline service life

3PE coated steel pipes are widely used in oil and gas transmission systems. Their core function is not to “increase strength,” but to address a far more critical challenge: long-term corrosion failure control in buried and aggressive service environments.

Oil pipelines typically pass through diverse geological conditions and remain buried underground or installed in complex environments for decades. Under these conditions, pipelines are not exposed to a single corrosion factor, but to multiple continuously interacting degradation mechanisms.

1. Chemical Corrosion: Continuous Attack from Soil and Ground Media

The underground environment is not static; it is a continuously reactive chemical system:

• Moisture in the soil forms an electrolyte environment
• Salts, acids, and alkaline substances accelerate electrochemical reactions
• Long-term groundwater infiltration increases corrosion rates

As a result, the steel surface undergoes continuous oxidation and gradual wall thickness loss over time.

2. Electrochemical and Microbiologically Influenced Corrosion (MIC): Invisible but Highly Dangerous Damage

In many oil and gas projects, the most severe corrosion is often invisible during early stages:

• Microbiologically Influenced Corrosion (MIC) develops continuously in moist soils
• Stray current corrosion is triggered by nearby railways or power systems
• Local potential differences lead to rapid pitting corrosion development

These mechanisms share a key characteristic:

They show almost no obvious symptoms in the early stage, but once initiated, they can propagate rapidly and uncontrollably.

3. Mechanical and Construction Damage: The Hidden Cause of Coating Failure

Many pipeline failures are not caused by operational conditions, but by damage introduced during construction and installation:

• Backfilling with rocks or sharp materials causing coating scratches
• Impact damage during lifting, loading, and transportation
• External stress from ground settlement and soil movement
• Long-term soil pressure leading to coating cracking

Conclusion:
A corrosion protection system must not only resist corrosion, but also withstand mechanical and installation-related damage.

4. Environmental Aging: Performance Degradation Over Long-Term Operation

Even in the absence of visible damage, coating materials will degrade over time:

• Thermal cycling leads to material fatigue
• UV exposure or thermal aging (especially in above-ground or shallow-buried sections)
• Gradual decline in polymer performance over time

If the protective system is unstable, the following defects may occur:

• Blistering
• Delamination
• Microcrack propagation

Core Conclusion

Pipeline failures are rarely caused by insufficient steel strength. Instead, they are the result of:

the combined effect of external corrosion environments, mechanical damage, and long-term material aging leading to coating system failure.

Therefore, a pipeline protection system must be capable of resisting:

• Chemical corrosion
• Electrochemical corrosion
• Mechanical damage
• Long-term aging

as an integrated and multi-layer defense system.

Engineering Significance

This is precisely why 3PE coated steel pipes are widely used in long-distance oil and gas transmission projects.

Their value is not simply “anti-rust protection,” but:

maintaining long-term structural stability and coating integrity in complex buried environments throughout the entire service life of the pipeline.

II. 3PE Anti-Corrosion System: How the Three-Layer Structure Works Together to Protect Steel Pipes

The core advantage of 3PE coated steel pipe does not lie in a single material property, but in the synergistic performance of a three-layer composite structure, which collectively delivers integrated protection against corrosion, mechanical impact, and long-term degradation.

1. First Layer: Fusion Bonded Epoxy (FBE) — The Primary Anti-Corrosion Barrier

This inner layer is directly applied onto the steel surface and serves as the foundation of the entire coating system.

Its function can be understood as:

• Acting like a “primer layer” that firmly bonds to the steel substrate
• Preventing direct contact between steel and corrosive elements such as moisture, oxygen, and electrolytes
• Forming a highly stable and continuous anti-corrosion film on the pipe surface

More importantly, the FBE layer provides extremely strong adhesion to the steel substrate, which is critical for long-term corrosion resistance and coating durability.

2. Second Layer: Adhesive Layer (AD) — The Bonding Bridge Between Two Materials

This layer is not primarily responsible for corrosion resistance, but for structural integration.

Its role can be understood as:

• Strongly bonding the inner FBE layer with the outer polyethylene (PE) layer
• Acting as a transition medium between dissimilar materials
• Absorbing thermal expansion and contraction caused by temperature fluctuations
• Preventing delamination, void formation, or interlayer separation during long-term service

This layer ensures that the entire coating system behaves as a unified structure rather than three independent layers.

3. Third Layer: Polyethylene Outer Layer (PE) — The External Protective Armor

This is the outermost and most visible layer of the system.

Its primary functions include:

• Resisting mechanical damage such as impact, abrasion, and rock pressure during construction
• Preventing direct exposure of the pipe to groundwater and soil corrosion
• Providing long-term mechanical protection in buried and harsh environments

In engineering terms, this layer can be regarded as the “protective armor” of the steel pipe, ensuring the coating system remains intact during transportation, installation, and long-term underground service.

III. High-Temperature and High-Pressure Adaptability: Why It Remains Reliable Under Real Operating Conditions

In oil and gas transmission systems, long-term pipeline safety is determined not only by the mechanical strength of the steel pipe itself, but more importantly by the ability of the external corrosion protection system to maintain long-term stability under continuous service conditions.

For buried oil and gas pipelines, the coating system must withstand:

• Continuous high internal pressure operation
• Cyclic temperature fluctuations
• Soil stress and ground settlement
• Groundwater and corrosive media exposure
• Long-term buried aging conditions

1. High-Pressure Operating Conditions: Not Only the Steel Pipe Bears the Load, the Coating Must Remain Stable

Long-distance oil and gas pipelines typically operate under continuous high-pressure conditions over extended periods.

Although internal pressure is primarily borne by the steel pipe itself, pressure fluctuations, pipeline vibration, and geological stress can still impose long-term mechanical influence on the external coating system.

The advantages of the 3PE coating system include:

• The outer polyethylene (PE) layer provides excellent impact resistance and deformation tolerance
• The three-layer structure ensures high interlayer bonding strength
• Resistance to coating disbondment, cracking, and loss of adhesion during long-term operation
• Stable long-term external corrosion protection performance under dynamic service conditions

2. Temperature Variation Conditions: Reducing Coating Failure Risks Caused by Thermal Expansion and Contraction

In real pipeline operations, temperature fluctuations are common, including:

• Temperature variations of transported crude oil or natural gas
• Seasonal changes in surrounding soil temperature
• Thermal shock during pipeline start-up and shutdown cycles
• Day-night temperature differences in certain regions

If coating material stability is insufficient, long-term thermal cycling may lead to:

• Coating cracking
• Blistering and delamination
• Reduced adhesion strength
• Increased localized corrosion risk

The 3PE coating system, through the synergistic performance of the FBE primer, adhesive layer, and PE outer layer, maintains strong adhesion and flexibility within a defined temperature fluctuation range. This significantly reduces the risk of coating failure caused by thermal stress.

It is important to note:

Standard 3PE coating systems are typically designed for medium- and low-temperature buried pipeline applications.

For pipelines operating under long-term elevated temperatures (generally above 70°C–80°C), the industry more commonly adopts 3PP (Three-Layer Polypropylene) coating systems, which offer superior high-temperature resistance.

3. Long-Term Operational Stability: The Key Factor Determining Pipeline Service Life

For oil and gas transmission projects, the true determinant of service life is not short-term mechanical strength, but the long-term stability of the corrosion protection system over decades of operation.

The long-term advantages of 3PE coated steel pipe include:

• Strong resistance to soil-induced corrosion
• Excellent moisture resistance and environmental aging performance of the PE outer layer
• Stable coating structure with low risk of large-scale failure
• Reduced frequency of maintenance, excavation, and repair operations

As a result, 3PE coating systems are widely used in:

• Long-distance oil and gas transmission pipelines
• Highly corrosive buried environments
• National energy infrastructure projects
• Pipeline systems with stringent service life requirements

In practical engineering applications, the design service life of such systems is typically intended to exceed 20–30 years of stable operation.

IV. Oilfields and Long-Distance Pipeline Projects: How to Determine Whether 3PE Coated Steel Pipes Are Required

1. Oilfield Gathering Systems: Why Are They Considered High-Priority Corrosion Protection Areas?

Oilfield gathering pipelines typically operate in environments characterized by high corrosion risk, dispersed layouts, and difficult maintenance conditions, including:

• Transport media containing water, salts, and sulfur compounds
• Pipeline networks located in remote fields or complex terrains
• Extremely high maintenance costs in case of failure or shutdown

Basic selection principle:
If a pipeline failure would result in high repair costs and significant production downtime, then a 3PE corrosion protection system should be strongly considered.

2. Oil and Gas Long-Distance Transmission Pipelines: Why 3PE Is the Preferred Choice

Long-distance transmission pipelines are typically characterized by:

• Very long distances (tens to thousands of kilometers)
• Extended service life requirements (20–30+ years)
• Multi-terrain routes (mountains, deserts, farmland, etc.)

Selection logic:
If the project is part of a national energy backbone system or trunk line, or:

• Pipeline shutdown would cause major economic losses
• Frequent excavation and maintenance are not feasible during service life

Then 3PE coating is considered a standard configuration for such projects.

3. Highly Corrosive Environments: Key Conditions Where 3PE Becomes Essential

Typical high-corrosion environments include:

• High salinity or alkaline soil regions
• Areas with high groundwater levels
• Coastal and offshore environments
• Industrial pollution zones (e.g., chemical plants, refineries, petrochemical areas)

Evaluation principle:
If the surrounding soil or environment has continuous and aggressive corrosion activity, low-grade coating systems are not recommended.

4. Oil & Gas Stations and Auxiliary Systems: Often Overlooked but Equally Critical

Many projects focus primarily on trunk pipelines; however, auxiliary systems are equally important, including:

• Pump station inlet and outlet pipelines
• Metering station connecting pipelines
• Storage tank farm transfer pipelines

Although these sections are relatively short in distance, they often have:

• Higher failure frequency
• Significant operational impact during maintenance or repair

Therefore, 3PE coating is also widely applied here to ensure uniform corrosion protection standards and system integrity consistency across the entire pipeline network.

5. Simple Selection Guideline for 3PE Coated Steel Pipes

If you are unsure whether 3PE is required, the following rule can be used:

If two or more of the following conditions are met → 3PE coating is strongly recommended:

• Buried installation with no frequent maintenance access
• Design service life ≥ 20 years
• Medium to high corrosion environment
• Transport medium: oil, gas, or water-oil mixture
• High economic loss in case of pipeline shutdown

V. 3PE Coated Steel Pipe Standards

1. Pipe Body Standards

2. Standards for 3PE anti-corrosion coating

VI. Testing Standards

VII. Pipeline Safety Operation System: Why 3PE Pipelines Require an Integrated “Corrosion Protection + Monitoring + Management” Approach

1. Cathodic Protection System: Preventing “Invisible Electrochemical Corrosion”

Even with a 3PE coating system, micro-defects or aging-related weak points may still exist over long-term service.

The function of cathodic protection is to:

• Actively suppress electrochemical corrosion of the steel pipe
• Provide protective current at coating defect locations
• Prevent localized corrosion from developing into through-wall perforation

In essence, it serves as the second defensive barrier when the coating system is compromised.

2. Regular Potential Monitoring: Verifying Whether the Pipeline Is Still Protected

The primary purpose of potential measurement is not equipment inspection, but system status evaluation, including:

• Whether the cathodic protection system is operating effectively
• Whether the pipeline remains within the safe electrochemical potential range
• Whether any under-protected or high-risk areas exist along the pipeline

This ensures continuous verification of corrosion protection performance in real operating conditions.

3. Pipeline Integrity Management (PIM): Shifting from “Repair-Based” to “Preventive” Management

Pipeline Integrity Management (PIM) is not a single inspection activity, but a comprehensive management system that includes:

• Risk assessment (identifying high-risk pipeline sections)
• Operational data tracking and historical record analysis
• Failure prediction and early warning mechanisms
• Preventive maintenance planning and scheduling

This approach transforms pipeline maintenance from reactive repair to proactive risk control.

4. Internal and External Corrosion Monitoring: Tracking “Invisible Changes”

Pipeline corrosion often develops in areas that cannot be directly observed, requiring continuous monitoring of:

• Internal corrosion caused by transported media
• External corrosion caused by soil and groundwater environments
• Corrosion growth rate and localized degradation behavior

This enables early detection of degradation trends before structural damage occurs.

5. Intelligent Pigging Inspection: A Full “Health Check” for the Pipeline

Pigging (PIG) inspection enables in-line pipeline evaluation without interrupting operation.

It can be used to:

• Measure wall thickness variations along the pipeline
• Detect corrosion pits, cracks, or other structural defects
• Assess the overall integrity and health condition of the pipeline system

This technology provides a comprehensive diagnostic tool for long-distance pipeline safety management.

VIII. FAQ

1. Why are 3PE coated Spiral steel pipes used in oil and gas pipelines?

Oil and gas pipelines are typically buried underground for long periods and are exposed to corrosive factors such as soil moisture, salts, and stray electrical currents.

The 3PE coating system provides:

• Corrosion resistance
• Protection against mechanical impact and damage
• Extended service life

Therefore, it is widely used in long-distance oil and gas transmission pipelines.

2. What is the typical service life of 3PE coated steel pipes?

The general design service life is:

• 20–30 years or longer

However, the actual service life depends on:

• Construction and installation quality
• Soil corrosivity conditions
• Integrity of the cathodic protection system
• Presence of mechanical damage during operation

3. Can 3PE coated steel pipes be used for high-temperature pipelines?

Yes, but with temperature limitations:

• Generally suitable for service temperatures ≤ 60–80°C

For long-term high-temperature operation (above this range), the following systems are typically recommended:

• 3PP (Three-Layer Polypropylene) coating system
• High-temperature FBE (Fusion Bonded Epoxy) coating systems

4. What is the difference between 3PE and FBE coatings?

In simple terms:

• FBE (Fusion Bonded Epoxy): Single-layer coating with excellent corrosion resistance but moderate impact resistance
• 3PE (Three-Layer Polyethylene): Multi-layer system with superior impact resistance and better suitability for buried pipeline environments

For long-distance oil and gas pipelines, 3PE is generally the preferred option.

5. Why do 3PE coated pipelines still require cathodic protection?

Even high-performance coatings may have:

• Mechanical scratches
• Field joint coating defects
• Long-term aging effects

The role of cathodic protection is to:

• Prevent corrosion from expanding at coating defect points
• Provide electrochemical protection to exposed steel areas

It acts as a secondary safety barrier for pipeline integrity.

6. Which projects are suitable for 3PE coated steel pipes?

3PE coated steel pipes are suitable for:

• Long-distance buried pipelines
• Oil and gas transmission projects
• Highly corrosive soil environments
• Projects where maintenance access is difficult
• Pipeline systems designed for service life of 20+ years

Simple rule of thumb:
If maintenance or repair costs are high, 3PE coating is strongly recommended.

Large-diameter 3PE-coated pipes are increasingly widely used in modern oil and gas, water conservancy, and infrastructure projects, playing a particularly critical role in long-distance, high-flow transmission systems.

In practical engineering applications, large-diameter pipelines are not merely “l(fā)arger in size”; they represent a more efficient transportation solution. Under equivalent pressure conditions, they can achieve higher flow rates, reducing the number of intermediate pressurization facilities and thereby lowering overall construction and operational costs.

At the same time, in national-level infrastructure projects—such as long-distance oil and gas pipelines, inter-regional water diversion projects, and metropolitan water supply systems—large-diameter pipelines have become an integral part of the main transportation network.

II. Manufacturing Process for Large-Diameter 3PE-Coated Pipes

1. Surface Pretreatment of Bare Pipes

• Preheating: The steel pipes are first preheated to remove moisture and oil from the surface.
• Shot Blasting: High-speed abrasive particles are propelled against the pipe surface to achieve a Sa2.5 (near-white) rust removal standard.
• Anchor Pattern Depth: The treated surface develops a certain degree of roughness (typically 40–100 μm), known as the “anchor pattern,” which significantly enhances the mechanical adhesion of the coating.

2. Medium-Frequency Induction Heating

• Temperature Control: Heat the steel pipe to 200°C–230°C. This temperature range is critical: if the temperature is too low, the epoxy powder will not cure completely; if it is too high, the powder may char or the polyethylene may degrade.

3. Three-Layer Coating Process

• Base Layer: Epoxy Powder
• Applied to the surface of the heated steel pipe via electrostatic spraying.
• Function: Provides core chemical corrosion resistance and extremely strong adhesion, preventing cathodic delamination.

• Intermediate Layer: Adhesive
• Extruded and wound onto the epoxy powder while it is still in a molten state.
• Function: Acts as an “adhesive” to firmly bond the underlying epoxy powder to the outer polyethylene layer.

• Outer Layer: Polyethylene
• Using a lateral extrusion winding process, molten PE tape is tightly wound around the steel pipe surface and smoothed by a pressure roller.
• Function: Provides mechanical protection, water resistance, abrasion resistance, and impact resistance, serving as the pipeline’s “armor.”

4. Cooling and Curing

• After coating, the steel pipe must be immediately cooled by circulating water spray.
• Purpose: To rapidly harden and set the polyethylene coating, preventing damage during subsequent handling.
• Result: After cooling, the three layers of material react to form a dense composite structure, typically between 2.0mm and 3.7mm thick (depending on pipe diameter).

5. Quality Inspection

• Electrospark Inspection: The entire line is scanned using a high-voltage electrospark detector to ensure the coating is free of pinholes or leaks.
• Thickness Measurement: An ultrasonic thickness gauge is used to ensure that the total 3PE coating thickness meets specifications.
• Peel Strength Test: A random section of the coating is cut and subjected to a pull-off test to ensure there is no delamination between the three layers.

6. Pipe End Preparation

• Reserved Length: Typically 100 mm to 150 mm.
• Bevel Grinding: Grind the edges of the pipe end coating (typically a 30° bevel) to prevent the anti-corrosion spiral steel pipe coating from peeling during installation.

III. Applications of Large Diameter 3PE Coated Pipes

Large diameter 3PE coated pipes are widely used in national infrastructure projects and large-scale transmission systems. These projects typically involve long transportation distances, extended service life requirements, and challenging maintenance conditions. Compared with conventional steel pipes, 3PE coated steel pipes are better suited for long-term underground installation and operation in harsh environments, making them the preferred choice for many major engineering projects.

1. National Oil and Gas Transmission Networks

In the oil and natural gas industry, large diameter 3PE coated pipes are primarily used for:

• Long-distance crude oil transportation pipelines
• Natural gas trunk pipelines
• Urban gas distribution networks

These pipeline systems are often designed to operate continuously for several decades, requiring exceptional levels of safety, reliability, and corrosion resistance.

Why Use 3PE Coating for Oil and Gas Pipelines?

Most oil and gas pipelines are buried underground for long periods and are exposed to various corrosive conditions, including:

• Soil corrosion
• Groundwater penetration
• Oxidation caused by moisture and humid environments

The 3PE (Three-Layer Polyethylene) coating system provides an effective barrier against external corrosive media, significantly improving the long-term integrity and operational stability of the pipeline.

2. Municipal Water Supply and Inter-Basin Water Transfer Projects

Large diameter 3PE steel pipes are extensively used in major water transmission projects, including:

• Municipal water supply trunk networks
• Long-distance water transfer systems
• Reservoir water conveyance pipelines
• Agricultural irrigation main pipelines

As urban populations continue to grow and water demand increases, traditional small-diameter pipelines often struggle to meet the requirements of high-volume water transportation.

Advantages of Large Diameter Pipelines

Higher Water Conveyance Capacity
Large diameter pipes can transport greater volumes of water within a shorter period, improving overall system efficiency.

Reduced Pressure Loss
They provide more stable hydraulic performance and lower pressure losses during long-distance transmission.

Lower Operating Costs
Their increased flow capacity can reduce the number of pumping stations required, helping lower overall project investment and operating expenses.

3. Power Plants and Industrial Circulating Water Systems

In thermal power plants, chemical processing facilities, and large industrial parks, large diameter 3PE coated pipes are commonly used for:

• Cooling water circulation systems
• Industrial water supply networks
• Drainage and wastewater transmission systems

These environments often feature high humidity levels and continuous exposure to moisture, making conventional steel pipes vulnerable to external corrosion. The 3PE coating provides reliable long-term protection and extends pipeline service life.

4. Port Infrastructure and Marine Engineering

Ports, seawater transportation projects, and offshore engineering applications require even higher levels of corrosion protection due to the harsh marine environment, which is characterized by:

• High salt content
• High humidity
• Accelerated corrosion rates

Large diameter 3PE coated pipes offer excellent resistance to marine corrosion and are widely used in:

• Seawater transmission pipelines
• Port and harbor infrastructure projects
• Offshore platform supporting facilities and auxiliary systems

Their superior corrosion resistance and mechanical durability make them an ideal solution for demanding coastal and offshore applications.

IV. Our Project Assurance Advantages: Solving the Key Challenges of Large Diameter Pipeline Construction

In large diameter pipeline projects, high-quality steel pipes are only the starting point. Our real value lies in eliminating common construction risks before they occur through strict manufacturing control, advanced corrosion protection solutions, and comprehensive project support.

1. End-to-End Corrosion Protection System

Due to their substantial weight, large diameter pipes are particularly vulnerable to 3PE coating damage during loading, unloading, transportation, and storage.

Our Solution

Every pipe is equipped with customized pipe-end protectors designed to safeguard both the beveled ends and the coating system during handling and transit.

Delivery Advantages

We use professional heavy-duty fiber slings for loading operations and provide scientifically designed stacking and storage recommendations. Even after thousands of kilometers of ocean and inland transportation, the 3PE coating remains intact, significantly reducing field repair work, project delays, and additional maintenance costs for customers.

2. Superior Weldability for Leak-Free Pipeline Systems

The long-term integrity of any large diameter pipeline system depends heavily on weld quality.

Our Solution

We strictly control pipe-end geometry in accordance with API 5L PSL2 requirements, ensuring excellent roundness and dimensional accuracy within tight tolerances.

Performance Benefits

Precise bevel preparation and superior pipe-end alignment enable faster and more efficient field fit-up and welding. We support 100% UT (Ultrasonic Testing) and RT (Radiographic Testing) inspection requirements, ensuring that every weld joint is capable of withstanding long-term operating pressure and demanding service conditions.

3. Expert Field Joint Coating Support: Strengthening the Most Critical Point of the Corrosion Protection System

Field weld joints are widely recognized as the most vulnerable area in any pipeline corrosion protection system and are often considered the weakest link in long-term pipeline integrity.

Our Solution

In addition to supplying the coated pipes, we provide matching field joint coating systems, including heat-shrink sleeves, heat-shrink wraps, and liquid epoxy repair materials, along with detailed installation procedures and technical guidance.

System Value

By delivering an integrated solution that combines coated pipes and compatible field joint protection materials, we ensure that welded joints achieve corrosion resistance, adhesion strength, and peel resistance comparable to the original 3PE coating. This integrated approach helps achieve a pipeline service life exceeding 50 years with minimal maintenance requirements.

4. Designed for Extreme Environments and Challenging Projects

Whether the pipeline crosses rivers, passes through wetlands, or is installed in coastal saline soils, environmental risks can significantly impact long-term pipeline performance.

Our Solution

We offer customized Heavy-Duty 3PE Coating Systems tailored to specific project conditions and environmental challenges.

Reliability Advantages

By increasing the polyethylene layer thickness and optimizing the performance of the fusion bonded epoxy (FBE) primer, our coating systems provide enhanced resistance to cathodic disbondment, soil stress, and aggressive underground environments. Regardless of geological complexity or installation conditions, our solutions help ensure reliable and long-term pipeline operation.

V. Frequently Asked Questions (FAQ)

Q1: What is the standard thickness of a 3PE coating, and how can compliance be verified?

A: The total thickness of a 3PE coating depends on the pipe diameter and project specifications. In general, the coating thickness ranges from 2.0 mm to 3.0 mm for Normal-Duty systems and 2.7 mm to 3.7 mm for Heavy-Duty systems.

Expert Recommendation:
Each production batch should undergo multi-point thickness inspection using an ultrasonic coating thickness gauge. When sourcing 3PE coated spiral steel pipes, always confirm that the supplier complies with DIN 30670 or ISO 21809-1, as minimum coating thickness requirements may vary slightly between standards.

Q2: Why is 3PE considered one of the best corrosion protection systems for long-distance pipelines?

A: The effectiveness of 3PE coating comes from the combination of three protective layers:

• Fusion Bonded Epoxy (FBE) Primer provides excellent adhesion and chemical resistance.
• Adhesive Layer creates a strong bond between the FBE and polyethylene layers.
• Polyethylene (PE) Outer Layer offers outstanding mechanical protection, impact resistance, and water impermeability.

Expert Recommendation:
Compared with single-layer FBE coatings or cold-applied tape wrapping systems, 3PE coatings can provide a service life exceeding 50 years. They also offer superior resistance to mechanical damage during backfilling operations, helping reduce long-term maintenance costs.

Q3: How can field joint coating protection achieve the same performance as the factory-applied 3PE coating?

A: Field weld joints are often considered the most vulnerable section of a pipeline corrosion protection system. The most widely accepted solution is the use of a three-layer heat-shrink sleeve system.

Expert Recommendation:
Before field joint coating installation, pipe ends should be prepared to St3 power tool cleaning or Sa 2.5 abrasive blast cleaning standards. It is highly recommended to use field joint coating materials that are fully compatible with the original pipe coating system. Strict control of preheating temperature is essential to prevent edge lifting, moisture ingress, and premature corrosion.

Q4: What should be done if the 3PE coating is damaged during transportation?

A: Minor coating damage that does not expose the steel substrate can typically be repaired using two-component liquid epoxy repair coatings or approved patch repair materials.

Expert Recommendation:
Before shipment, we perform a 30° bevel preparation on pipe ends and install protective end caps to minimize transportation-related damage. If coating repairs are carried out on-site, the repaired area should be retested using a holiday detector (spark tester) to verify coating continuity and electrical insulation integrity.

Q5: What is the fundamental difference between PSL1 and PSL2 3PE coated steel pipes?

A: PSL2 (Product Specification Level 2) is a higher-grade specification under API 5L. It imposes stricter requirements on:

• Chemical composition
• Carbon equivalent (CE)
• Mechanical properties
• Impact toughness testing
• Quality control and inspection procedures

Expert Recommendation:
For pipelines transporting flammable or hazardous media such as crude oil and natural gas, or for projects located in low-temperature environments, API 5L PSL2 pipes are strongly recommended. The enhanced material requirements help reduce the risk of brittle fracture and improve overall pipeline safety.

Q6: Can 3PE coatings withstand long-term ultraviolet (UV) exposure?

A: 3PE coating systems are primarily designed for buried pipeline applications. Although the polyethylene outer layer contains carbon black to improve weather resistance, prolonged exposure to direct sunlight—typically beyond 6 to 12 months—may gradually cause coating aging and embrittlement.

Expert Recommendation:
If pipes will be stored outdoors for extended periods or used in above-ground installations, this should be specified during the procurement stage. Additional UV stabilizers can be incorporated into the coating system, or protective covers and shading measures can be recommended to preserve long-term coating performance.

In long-distance oil and gas pipelines and high-pressure pipeline projects, the selection of steel grade directly determines the safety, cost-effectiveness, and overall service life of the pipeline system. API 5L X65 is classified as a medium-to-high strength line pipe steel grade and is widely used in modern energy transportation systems, particularly for projects that demand high pressure resistance and reliability.

In practical engineering applications, this grade is commonly manufactured into solutions such as the API 5L X65 3PE Coated SSAW Pipe, which combines high-strength steel performance with advanced anti-corrosion protection for long-term service in harsh operating environments.

The “65” in X65 denotes a minimum yield strength of approximately 65,000 psi (around 450 MPa). This indicates that the steel can maintain structural stability under high internal pressure or external loads without significant permanent deformation, ensuring the safe operation of the pipeline system.

As a result, X65 is not only suitable for high-pressure transportation systems but is also commonly employed in cross-regional oil and gas pipelines, onshore-to-offshore connections, and large-scale energy infrastructure projects. It is regarded as one of the most mature and reliable steel grades in international engineering applications today.

II. Background of High-Pressure Transmission Systems

In oil and gas, water, and energy transmission engineering, a “high-pressure transmission system” is not merely a technical definition. It fundamentally reflects the core practical requirements of modern infrastructure projects: longer transportation distances, higher throughput capacity, lower operational costs, and enhanced safety assurance.

With continuously growing global energy demand, many projects are no longer short-distance pipelines but long-haul transmission systems stretching hundreds or even thousands of kilometers. In such scenarios, both clients and engineering designers typically face several critical and highly practical challenges:

1. How can stable pressure be maintained over long-distance transmission?

The longer the pipeline, the more significant the pressure loss becomes. To ensure sufficient delivery capacity at the receiving end, the overall system operating pressure must be increased during the design stage. This requirement directly drives the widespread adoption of high-pressure transmission systems.

2. How can safety be ensured while increasing operating pressure?

Higher internal pressure means greater mechanical stress on the pipeline. If material selection is inadequate, risks such as deformation, fatigue failure, or leakage may occur. Therefore, engineers are most concerned with:

• Whether the material has sufficient strength
• Whether the weld integrity is reliable
• Whether the system can ensure long-term operational safety

In this context, solutions such as the API 5L X65 3PE Coated SSAW Pipe are widely adopted in demanding pipeline projects due to their combination of high-strength steel performance and advanced anti-corrosion protection.

3. How can overall project cost be effectively controlled?

Although high-pressure systems improve transmission efficiency, improper steel grade selection may lead to:

• Excessive wall thickness → increased material cost
• Higher construction difficulty → increased installation cost
• More frequent maintenance requirements → higher lifecycle cost

Therefore, engineering design must strike a careful balance between “mechanical strength” and “economic efficiency.” The use of the API 5L X65 3PE Coated SSAW Pipe is often considered a balanced solution in such scenarios, offering both structural strength and cost-effectiveness over the full project lifecycle.

4. How can complex real-world environments be adapted to?

High-pressure pipelines are rarely operated in ideal conditions. Instead, they are commonly exposed to challenging environments such as:

• Desert regions
• Marshlands and wetlands
• High-salinity or saline-alkali soils
• Extremely cold or high-temperature areas

Each of these environments imposes additional demands on pipeline durability, corrosion resistance, and long-term operational safety, further highlighting the importance of selecting reliable materials and protective systems like API 5L X65 3PE Coated SSAW Pipe.

III. Advantages of SSAW Pipe Structure

In large-diameter oil, gas, and water transmission projects, the choice of Spiral Submerged Arc Welded (SSAW) steel pipe is not merely a matter of structural technique—it directly addresses some of the most practical demands of large-scale pipeline projects.

1. Large-Diameter Pipeline Requirements: How to achieve higher capacity at lower cost?

The core objectives of many long-haul projects are:

• Transporting larger volumes of medium (oil, gas, or water)
• Reducing frictional resistance
• Increasing throughput per unit time

The most straightforward approach to meet these goals is to increase the pipeline diameter.
The SSAW process offers distinct advantages:

• It allows stable production of large-diameter (and even extra-large-diameter) pipes
• It maintains effective cost control, making large-scale projects economically viable

2. Cost-Control Requirements: How to reduce material and manufacturing costs in large projects?

In major pipeline projects, material costs often account for a significant portion of the total investment.
Engineering teams are particularly focused on:

• Reducing cost per kilometer
• Minimizing steel waste while maintaining mechanical strength

By using a continuous strip forming method, SSAW pipes achieve:

• Higher raw material utilization
• Efficient use of wide steel plates
• Reduced production loss

3. Adaptation to Complex Engineering Requirements: How to meet varied lengths and specifications?

Long-haul pipelines typically feature:

• Multiple diameter specifications
• Extensive project lengths
• The need for customized pipe lengths

The SSAW process offers strong flexibility:

• Spiral angle can be adjusted to accommodate different diameters
• Pipe lengths can be customized according to project needs
• Wall thickness designs can be tailored to engineering specifications

4. Welding Reliability Requirements: How to ensure safe long-distance operation?

For buried pipelines, weld quality is one of the most critical risk points.
SSAW pipes use double-sided submerged arc welding (DSAW):

• Achieving more stable weld penetration
• Ensuring high consistency of weld quality
• Facilitating non-destructive testing (UT/RT)

5. Large-Scale Construction Requirements: How to improve installation efficiency?

In cross-regional energy projects, construction schedule and installation efficiency are crucial.
SSAW steel pipes offer:

• Relatively stable supply lead times
• High-volume production capability
• Ease of transportation and onsite assembly

These characteristics make SSAW pipes particularly suitable for:

• National long-distance transmission pipelines
• Large-scale municipal water supply projects
• Energy infrastructure projects

IV. Applications in Long-Distance Oil & Gas Pipelines

1. Why do oil and gas transportation systems rely on long-distance pipelines?

In practical energy supply networks, oil and gas fields are often located in remote regions, while major consumption markets are concentrated in urban and industrial areas.
The core engineering challenges are:

• How to reliably transport resources over hundreds or even thousands of kilometers?
• How to avoid the high costs and safety risks associated with frequent transportation methods, such as tanker trucks?
• How to ensure continuous 24/7 supply?

Long-distance pipelines are designed to:

• Replace high-cost, low-efficiency transportation methods
• Enable continuous, stable, and large-scale energy transmission

2. The focus is not on the “pipeline” itself, but on long-term operational safety

For oil and gas projects, pipelines are not one-off constructions—they are critical infrastructure expected to operate safely for over 30 years.
Engineering priorities include:

• Preventing leakage
• Withstanding long-term pressure fluctuations
• Adapting to complex geological conditions
• Ensuring long-term corrosion resistance

3. Why is high-strength steel, such as X65, crucial in oil and gas projects?

As transportation distances increase, system pressures rise, creating two practical issues:

• Increased wall thickness → higher material costs
• Greater welding complexity → reduced construction efficiency

Therefore, engineering design aims to:

• Use higher-strength steel to reduce wall thickness while maintaining safety
• Optimize the overall cost structure without compromising reliability

4. Why is 3PE anti-corrosion coating almost standard in oil and gas pipelines?

Most long-distance oil and gas pipelines are buried underground, often exposed to:

• Moist soils
• Saline or corrosive geological conditions
• Microbial corrosion

The main concern is not initial defects, but corrosion and leakage after 10–20 years of operation.
The 3PE anti-corrosion system provides:

• A barrier against moisture and oxygen
• Enhanced impact resistance
• Extended design life of 30–50 years

5. Real-world applications of long-distance oil and gas pipelines

Products such as API 5L X65 3PE Coated SSAW Pipe are commonly used in:

• Cross-regional crude oil trunk pipelines
• Main natural gas transmission networks
• Onshore-to-offshore gas pipelines
• National energy strategic pipelines
• Raw material transport systems for large refineries

These projects share common characteristics:

• Long transportation distances
• High operating pressures
• Extremely strict safety requirements
• Catastrophic consequences in case of failure

V. Safety Requirements in High-Pressure Environments

In high-pressure oil and gas and long-distance pipeline projects, safety is not an optional consideration—it is the foremost principle guiding the entire system design. Failure in such environments is rarely localized; it can affect tens or even hundreds of kilometers of pipeline, causing substantial economic losses and environmental risks.

Therefore, the requirements for steel pipes in high-pressure environments arise from several practical engineering objectives: no leakage, no instability, and long-term reliable operation.

1. Why do high-pressure environments impose stricter pipeline requirements?

As internal pipeline pressure increases, steel pipes are subjected to both circumferential (hoop) stress and axial stress. This means:

• The pipe must resist internal “expansive” forces
• Welds must withstand long-term cyclic pressure
• Materials must avoid fatigue failure during prolonged operation

2. The three primary safety risks that concern engineers

In high-pressure pipeline systems, design and procurement focus on three critical risk categories:

(1) Burst Risk
Insufficient material strength can result in instantaneous rupture under extreme pressure. Such incidents have a large destructive scope and are among the most strictly controlled risks in engineering.

(2) Fatigue Failure
High-pressure pipelines are rarely subjected to static loading. Long-term pressure fluctuations occur due to:

• Start-stop operations
• Flow rate variations
• Pressure surges

Repeated cycles can induce material fatigue, so pipes must exhibit excellent toughness and ductility.

(3) Weld Failure
For Spiral Submerged Arc Welded (SSAW) or Longitudinal Submerged Arc Welded (LSAW) pipes, welds are the most critical areas:

• Are there any incomplete penetrations?
• Are micro-cracks present?
• Can the welds sustain long-term operating pressure?

3. Why high-strength steel grades (such as X65) are better suited for high-pressure environments

An essential principle in high-pressure design is to use higher-strength materials to reduce wall thickness, balancing safety margins with cost efficiency. The advantages of X65 steel include:

• Higher yield strength (~450 MPa)
• Superior pressure-bearing capacity
• More stable long-term performance

This allows engineers to:

• Reduce wall thickness under the same operating pressure
• Decrease material consumption
• Maintain required safety factors

4. The importance of anti-corrosion systems for high-pressure safety

While many focus solely on mechanical strength, corrosion is one of the most significant long-term threats in buried high-pressure pipelines.
The 3PE anti-corrosion system plays a critical role by:

• Preventing external media from corroding the steel
• Reducing the risk of stress corrosion cracking (SCC)
• Extending the overall service life of the pipeline

In practice, pipelines such as the API 5L X65 3PE Coated SSAW Pipe integrate both high-strength steel and advanced anti-corrosion protection, providing the reliability required for decades of safe, high-pressure operation.

VI. International Engineering Standards (API 5L X65 3PE Coated SSAW Pipe)

In international oil and gas and long-distance pipeline projects, steel pipes must meet the requirements of multiple standard systems. These standards are used not only for production control but also for project acceptance and quality traceability, serving as an important basis for project safety.

Comparison Table of Commonly Used International Engineering Standards

VII. Selection Guide for API 5L X65 3PE Coated SSAW Pipe

1. Select Steel Grade Based on Operating Pressure

• Medium-pressure projects: X52 / X60
• High-pressure long-distance pipelines: X65 (commonly recommended)
• Ultra-high-pressure projects: X70 and above

2. Select Anti-Corrosion Coating Based on Project Environment

• Standard soil conditions: Standard 3PE coating
• Highly corrosive environments (saline-alkali soils / coastal areas): Enhanced 3PE coating

3. Select Product Specification Based on Project Requirements

• General projects: API 5L PSL1
• Oil & gas or high-pressure engineering projects: API 5L PSL2

VIII. Frequently Asked Questions

1. What pressure range is API 5L X65 SSAW pipe suitable for?

API 5L X65 SSAW steel pipe is typically used in medium-to-high pressure and high-pressure transmission systems, generally suitable for a pressure range of approximately 6–20 MPa, depending on pipe diameter, wall thickness, and specific engineering design requirements.

In practical oil and gas applications, it is commonly used in:

• Long-distance crude oil transmission trunk lines
• Natural gas main transmission networks
• Pipeline sections between compressor or booster stations

2. Why is 3PE coating essential for oil and gas pipelines?

The core function of 3PE anti-corrosion coating is to protect buried steel pipelines from long-term corrosion, especially in oil and gas transmission systems designed for decades of service with minimal maintenance.

Buried pipelines are typically exposed to:

• Soil corrosion
• Groundwater intrusion
• Saline or alkaline soil conditions
• Mechanical damage during construction

The 3PE system (Fusion Bonded Epoxy + Adhesive + Polyethylene) provides:

• Long-term corrosion protection
• Excellent impact resistance
• A design service life of 30–50 years

3. Why choose 3PE Coated Spiral Steel Pipe for oil and gas projects?

The main advantages of SSAW (Spiral Submerged Arc Welded) pipes lie in large diameter capability and cost efficiency, making them particularly suitable for long-distance transmission projects.

Compared with other pipe types:

• SSAW: Ideal for large diameters with better cost efficiency
• LSAW: Suitable for high-pressure critical pipeline sections
• Seamless pipe: Used for small-diameter high-pressure systems

4. What is the difference between API 5L PSL1 and PSL2? Which one should be used for high-pressure projects?

The main difference lies in the strictness of quality control and testing requirements:

• PSL1: Basic product specification level
• PSL2: More stringent requirements covering chemical composition control, impact testing, non-destructive testing, and traceability

For oil and gas and high-pressure pipeline projects, PSL2 is generally recommended, because it offers:

• Higher safety assurance
• Stricter quality control standards
• Better compliance with international engineering practices

5. What is the typical service life of API 5L X65 3PE steel pipes?

Under proper design, installation, and operating conditions, the typical service life is:
30–50 years

Actual service life depends on:

• Soil corrosion environment
• Quality of anti-corrosion coating
• Installation and backfilling quality
• Stability of operating pressure
• Inspection and maintenance practices

The 3PE anti-corrosion system is a key factor in extending pipeline service life.

6. What key parameters should be confirmed before purchasing API 5L X65 SSAW pipes?

Before procurement, it is recommended to confirm the following critical parameters:

• Transport medium (oil / gas / water)
• Design pressure and operating pressure
• Pipe dimensions (outer diameter, wall thickness, length)
• Steel grade and PSL level (PSL2 recommended)
• 3PE coating grade (standard or reinforced)
• Applicable standards (API, ISO, DIN, etc.)
• Testing requirements (UT/RT, hydrostatic testing, third-party inspection)

Confirming these parameters in advance helps effectively avoid:

• Incorrect product selection
• Project delays
• Increased costs
• Non-compliance with quality requirements
